2743019446
ObsoleteFair-Rite Products Corp.

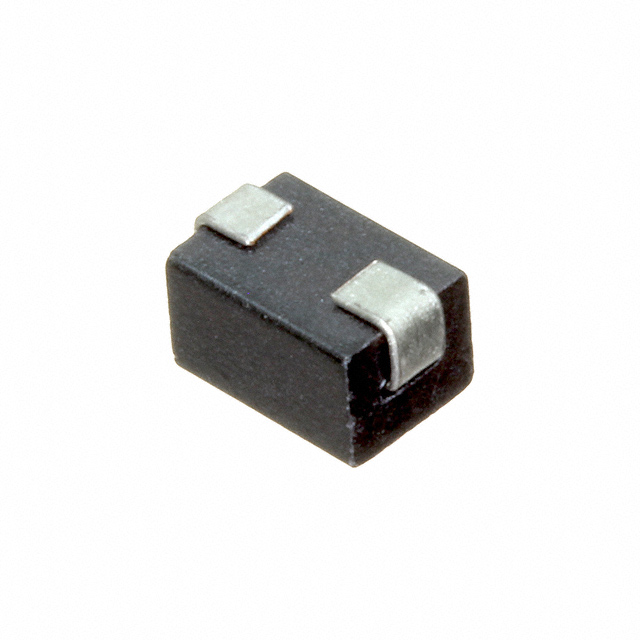

FERRITE BEAD 53 OHM 2SMD 1LN
2743019446
ObsoleteFair-Rite Products Corp.
FERRITE BEAD 53 OHM 2SMD 1LN
Description
General part information
2743019446
53 Ohms @ 100 MHz 1 Ferrite Bead 2-SMD, J-Lead 0.8mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2743019446 |
|---|---|
| DC Resistance (DCR) (Max) | 0.8 mOhm |
| Height (Max) | 0.12 in |
| Impedance | 53 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension Length | 0.201 in |
| Size / Dimension Width | 0.12 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
