ZE05H-4P-2H
ActiveHirose Electric USA, Inc.
CONN RECPT 4 POS
Deep-Dive with AI
Search across all available documentation for this part.
ZE05H-4P-2H
ActiveHirose Electric USA, Inc.
CONN RECPT 4 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZE05H-4P-2H |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A, 2 A |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height [z] | 1.457 " |
| Insulation Height [z] | 37 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.36 | |||
| Tape & Reel (TR) | 300 | $ 1.12 | ||
| 600 | $ 1.04 | |||
| 900 | $ 1.00 | |||
| 1500 | $ 0.95 | |||
| 2100 | $ 0.92 | |||
| 3000 | $ 0.89 | |||
| 7500 | $ 0.81 | |||
Description
General part information
ZE05H-4P-2H

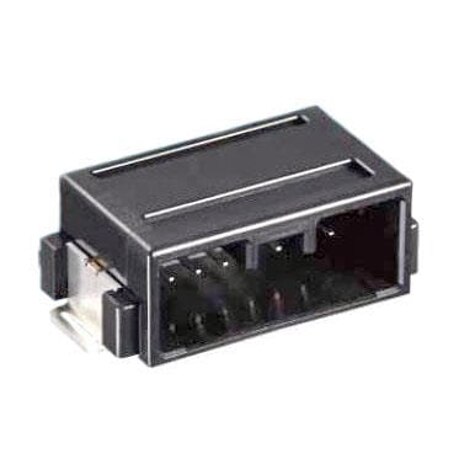

Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
