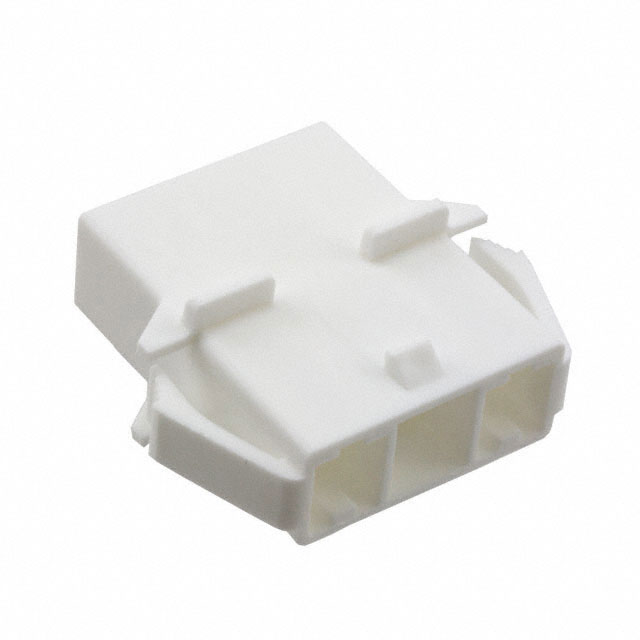

Specification	0351500310

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Blade, Female Blade Socket
Fastening Type	Locking Ramp
Material - Insulation	PBT, Polybutylene Terephthalate
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.287 in
Stacking Direction	Side to Side

035150 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material - Insulation	Note	Fastening Type	Contact Termination	Number of Rows	Mounting Type	Color	Connector Type	Contact Type	Number of Positions	Stacking Direction	Pitch	Row Spacing	For Use With/Related Products	Material	Specifications	Accessory Type
Molex 0351500214	-30 °C	105 °C	PBT Polybutylene Terephthalate	Contacts Not Included	Locking Ramp	Crimp	1	Panel Mount	Blue	Receptacle	Male Blade	2	Side to Side	0.244 in
Molex 0351503419	-40 °C	120 °C	PBT PC Polybutylene Terephthalate Polycarbonate	Contacts Not Included	Locking Ramp	Crimp	2	Panel Mount	Yellow	Receptacle	Female Blade Socket Male Blade	4	Side to Side Top to Bottom	0.244 in	0.35 in
Molex 0351500393									Yellow							VersaBlade Contacts	6 Nylon 6 Polyamide (PA66)	3 Positions	Retainer
Molex 0351500314	-40 °C	120 °C	PBT Polybutylene Terephthalate	Contacts Not Included	Locking Ramp	Crimp	1	Panel Mount	Blue	Receptacle	Female Blade Socket Male Blade	3	Side to Side	0.287 in
Molex 0351500610	-40 °C	120 °C	PBT Polybutylene Terephthalate Polyester	Contacts Not Included	Locking Ramp	Crimp	2	Panel Mount	Natural	Receptacle	Female Blade Socket Male Blade	6	Side to Side Top to Bottom	0.287 in	0.307 in
Molex 0351500293									Yellow							VersaBlade Housings	6 Nylon 6 Polyamide (PA66)	2 Positions	Retainer

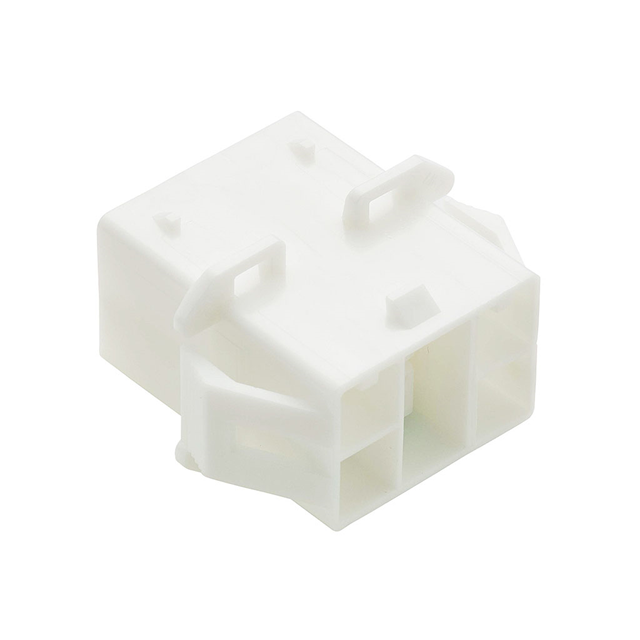

Molex 0351500614	-40 °C	120 °C	PBT Polybutylene Terephthalate Polyester	Contacts Not Included	Locking Ramp	Crimp	2	Panel Mount	Blue	Receptacle	Female Blade Socket Male Blade	6	Side to Side Top to Bottom	0.287 in	0.307 in

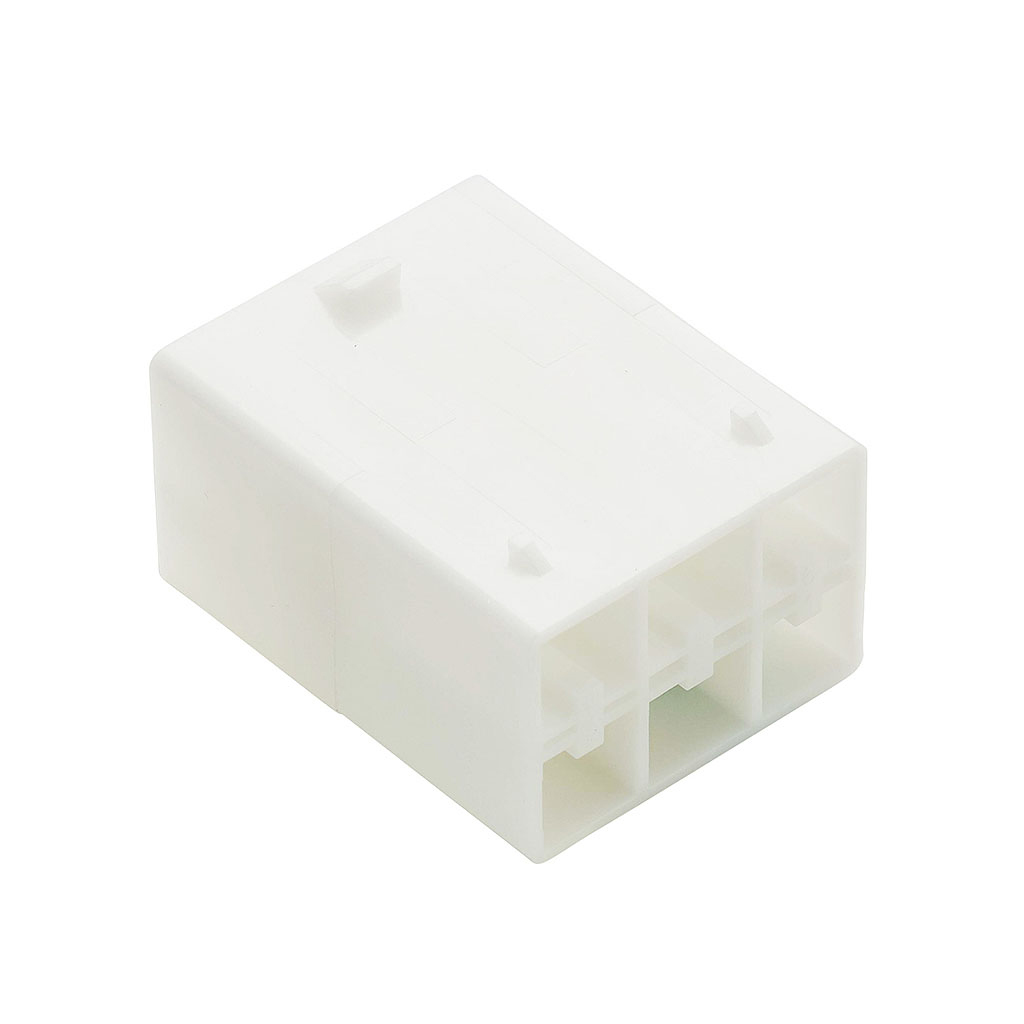

Molex 0351500604	-40 °C	120 °C	PBT Polybutylene Terephthalate Polyester	Contacts Not Included	Locking Ramp	Crimp	2	Free Hanging (In-Line)	Blue	Receptacle	Female Blade Socket Male Blade	6	Side to Side Top to Bottom	0.287 in	0.307 in
Molex 0351500204	-30 °C	105 °C	PBT Polybutylene Terephthalate	Contacts Not Included	Locking Ramp	Crimp	1	Free Hanging (In-Line)	Blue	Receptacle	Male Blade	2	Side to Side	0.244 in
Molex 0351500392									Red							VersaBlade Contacts	6 Nylon 6 Polyamide (PA66)	3 Positions	Retainer
