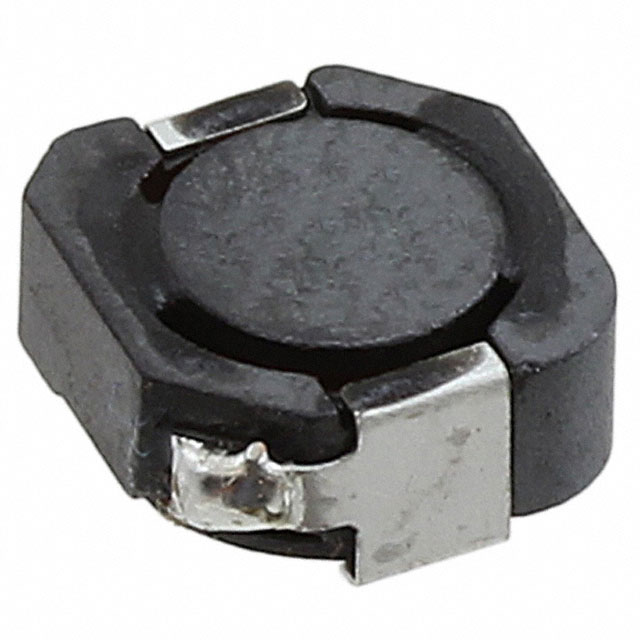

CDRH5D28RNP-270NC
ActiveSumida America Components Inc.
FIXED IND 27UH 850MA 146MOHM SMD
CDRH5D28RNP-270NC
ActiveSumida America Components Inc.
FIXED IND 27UH 850MA 146MOHM SMD
Description
General part information
CDRH5D28RNP-270NC
27 µH Shielded Inductor 850 mA 146mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH5D28RNP-270NC |
|---|---|
| Current Rating | 0.85 A |
| DC Resistance (DCR) (Max) | 146 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 27 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.232 in |
| Tolerance | 30 % |
