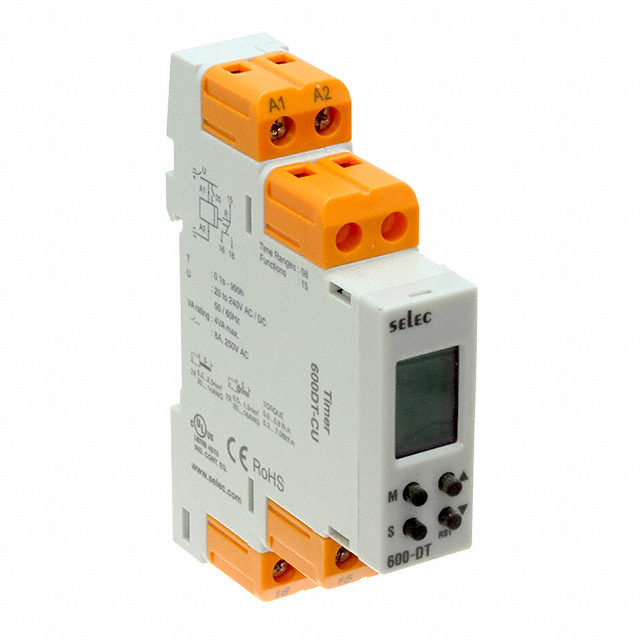

600DT-CU

Active

Altech Corporation

17.5MM DIGITAL MULTIFUNCTION TIMER

Search across all available documentation for this part.

Active

Altech Corporation

17.5MM DIGITAL MULTIFUNCTION TIMER

Technical Specifications

Parameters and characteristics for this part

Specification	600DT-CU

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	999 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	20 VAC

17.5MM DIGITAL MULTIFUNCTION TIMER

Part	Timing Adjustment Method	Mounting Type	Contact Rating @ Voltage	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Relay Type	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Function
Altech Corporation 600DT-CU	Up/Down Digit Keys	DIN Rail	8 A, 250 VAC	Screw Terminal	240 VAC	20 VAC	Mechanical Relay	Input Voltage, Trigger Signal	999 Hrs	0.1 Sec	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 999 Hrs Delay 8A @ 250VAC DIN Rail
