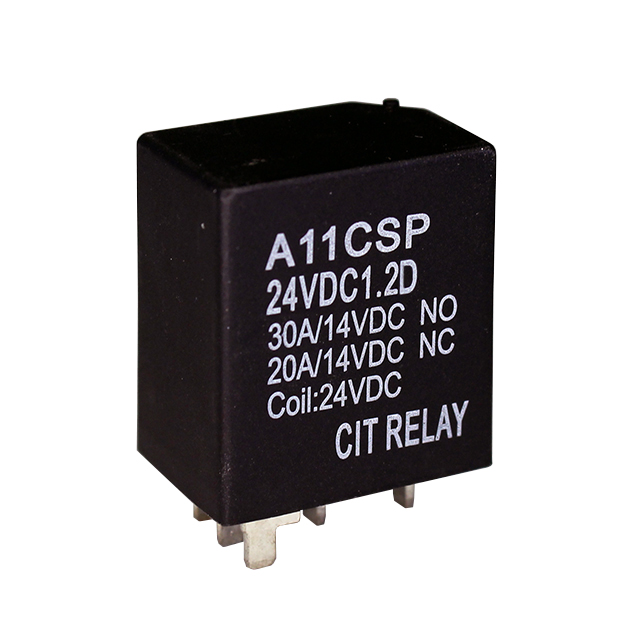

A11CSP24VDC1.2D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A11CSP24VDC1.2D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A11CSP24VDC1.2D | A11CSP Series |
|---|---|---|
| Coil Current | 50 mA | 50 - 125 mA |
| Coil Power | 1.2 W | 1.2 - 1.5 W |
| Coil Resistance | 480 Ohms | 96 - 480 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 12 - 24 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A | 30 A |
| Features | Sealed - Fully, Diode | Sealed - Fully, Diode, Resistor |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 18 VDC | 8.4 - 18 VDC |
| Must Release Voltage | 2.4 VDC | 1.2 - 2.4 VDC |
| Operate Time | 10 ms | 10 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 7 ms | 7 ms |
| Switching Voltage | 75 VDC | 75 VDC |
| Termination Style | PC Pin | PC Pin |
A11CSP Series
RELAY AUTOMOTIVE SPDT 30A 24V
| Part | Coil Power | Must Operate Voltage | Contact Form | Features | Mounting Type | Coil Current | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Release Voltage | Termination Style | Contact Rating (Current) | Switching Voltage | Operate Time | Contact Material | Release Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch A11CSP24VDC1.2D | 1.2 W | 18 VDC | SPDT (1 Form C) | Diode, Sealed - Fully | Through Hole | 50 mA | Non Latching | 85 °C | -40 °C | 24 VDC | 2.4 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 480 Ohms |
CIT Relay and Switch A11CSP24VDC1.5 | 1.5 W | 18 VDC | SPDT (1 Form C) | Sealed - Fully | Through Hole | 62.5 mA | Non Latching | 85 °C | -40 °C | 24 VDC | 2.4 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 384 Ohms |
CIT Relay and Switch A11CSP24VDC1.2R | 1.2 W | 18 VDC | SPDT (1 Form C) | Resistor, Sealed - Fully | Through Hole | 50 mA | Non Latching | 85 °C | -40 °C | 24 VDC | 2.4 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 480 Ohms |
CIT Relay and Switch A11CSP12VDC1.5R | 1.5 W | 8.4 VDC | SPDT (1 Form C) | Resistor, Sealed - Fully | Through Hole | 125 mA | Non Latching | 85 °C | -40 °C | 12 VDC | 1.2 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 96 Ohms |
CIT Relay and Switch A11CSP12VDC1.2R | 1.2 W | 8.4 VDC | SPDT (1 Form C) | Resistor, Sealed - Fully | Through Hole | 100 mA | Non Latching | 85 °C | -40 °C | 12 VDC | 1.2 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 120 Ohms |
CIT Relay and Switch A11CSP12VDC1.5D | 1.5 W | 8.4 VDC | SPDT (1 Form C) | Diode, Sealed - Fully | Through Hole | 125 mA | Non Latching | 85 °C | -40 °C | 12 VDC | 1.2 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 96 Ohms |
CIT Relay and Switch A11CSP24VDC1.5R | 1.5 W | 18 VDC | SPDT (1 Form C) | Resistor, Sealed - Fully | Through Hole | 62.5 mA | Non Latching | 85 °C | -40 °C | 24 VDC | 2.4 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 384 Ohms |
CIT Relay and Switch A11CSP12VDC1.5 | 1.5 W | 8.4 VDC | SPDT (1 Form C) | Sealed - Fully | Through Hole | 125 mA | Non Latching | 85 °C | -40 °C | 12 VDC | 1.2 VDC | PC Pin | 30 A | 75 VDC | 10 ms | Silver Tin Oxide (AgSnO) | 7 ms | 96 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.88 | |
| 10 | $ 1.65 | |||
| 25 | $ 1.56 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.28 | |||
Description
General part information
A11CSP Series
RELAY AUTOMOTIVE SPDT 30A 24V
