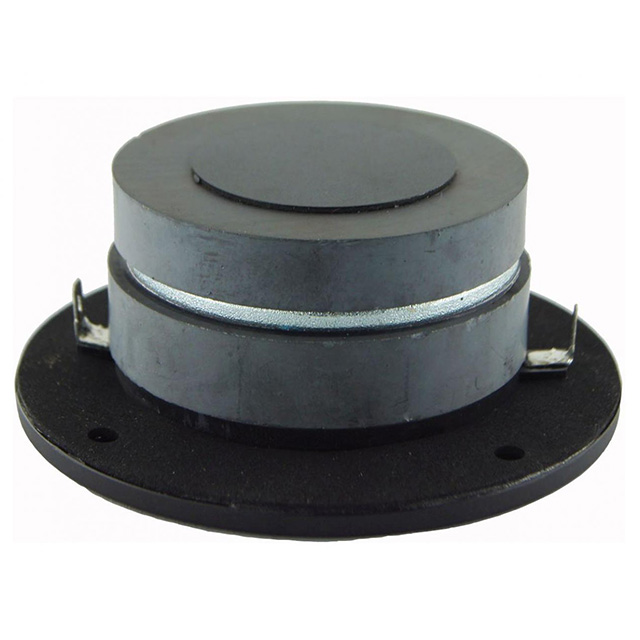

DA25BG08-06
ActivePeerless by Tymphany
SPEAKR 6.82OHM 100W TOP 93.5DB
DA25BG08-06
ActivePeerless by Tymphany
SPEAKR 6.82OHM 100W TOP 93.5DB
Description
General part information
DA25BG08-06
6.82 Ohms Tweeter Speaker 100 W 2 kHz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | DA25BG08-06 |
|---|---|
| Efficiency - dBA | 93.5 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 721 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 2 kHz |
| Height - Seated (Max) | 1.736 in |
| Impedance | 6.82 Ohms |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 100 W |
| Shape | Round |
| Size / Dimension Diameter | 4.106 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Tweeter |
