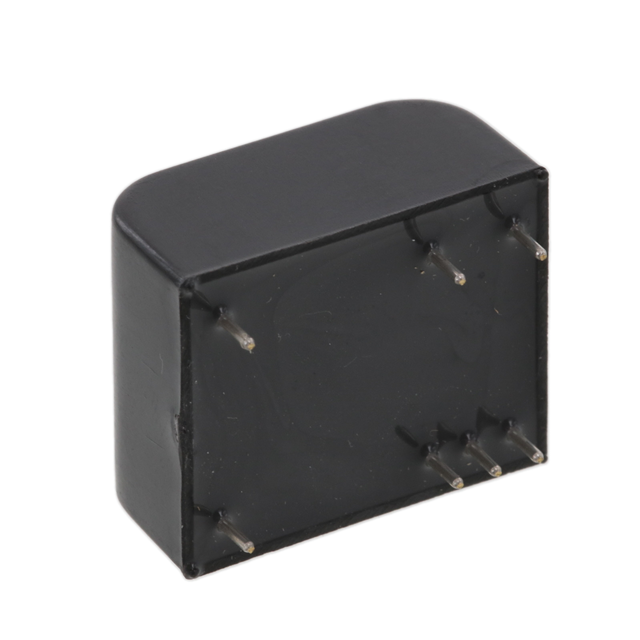

BPSX 1-14-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPSX 1-14-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPSX 1-14-00	BPSX 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	-	23 - 125 mA
Efficiency	70 %	70 %
Features	Universal Input	Universal Input
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	-	6.9 - 837 mW
Size / Dimension [x]	27.9 mm	27.9 mm
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [y]	0.92 "	0.92 "
Size / Dimension [y]	23.2 mm	23.2 mm
Size / Dimension [z]	0.55 in	0.55 in
Size / Dimension [z]	14 mm	14 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Output 1	14 V	8 - 14 V

BPSX 1 Series

AC/DC CONVERTER 8V 3.3V 837MW

Part	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 1	Power (Watts)	Number of Outputs	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Approval Agency
Cita Technologies, LLC. BPSX 1-08-33	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V	837 mW	2	53 mA, 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-50	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V	747 mW	2	28 mA, 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-08-50	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V	6.9 W	2	83 mA, 125 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-08-00	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	8 V		1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-33	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V	556 mW	2	23 mA, 71 mA	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus
Cita Technologies, LLC. BPSX 1-14-00	7-DIP Module	85 VAC	265 VAC	70 %	Universal Input	85 °C	-40 °C	Enclosed	14 V		1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	Through Hole	ITE (Commercial)	CB, cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.82
		5	$ 8.69
		20	$ 8.57
		40	$ 7.84
		100	$ 7.59
		260	$ 7.35
		500	$ 7.10

Description

General part information

BPSX 1 Series

Enclosed AC DC Converters 1 Output 14V 85 ~ 265 VAC Input
