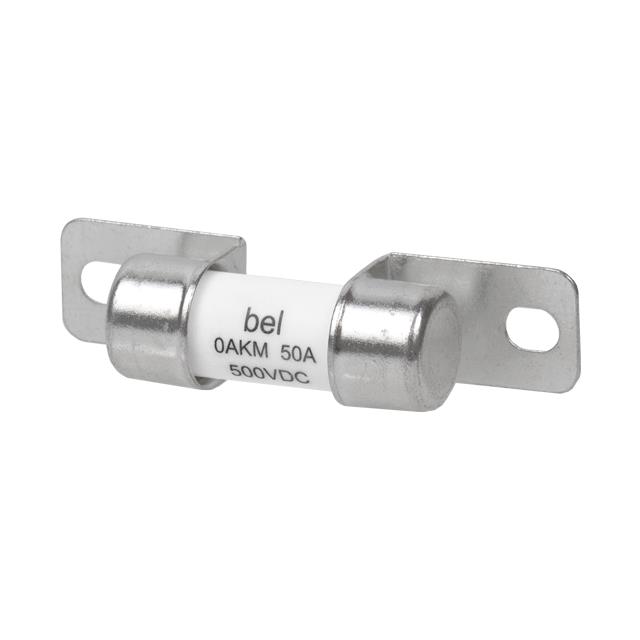

0AKMB9600-BD
ActiveBel Fuse Inc.
FUSE 60A 500V STUD MNT
0AKMB9600-BD
ActiveBel Fuse Inc.
FUSE 60A 500V STUD MNT
Description
General part information
0AKMB9600-BD
60A 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0AKMB9600-BD |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 20 kA |
| Current Rating | 60 A |
| Fuse Type | Cartridge |
| Melting I²t | 3960 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.591 in |
| Size / Dimension Length | 1.559 in |
| Voltage Rating - DC | 500 V |
