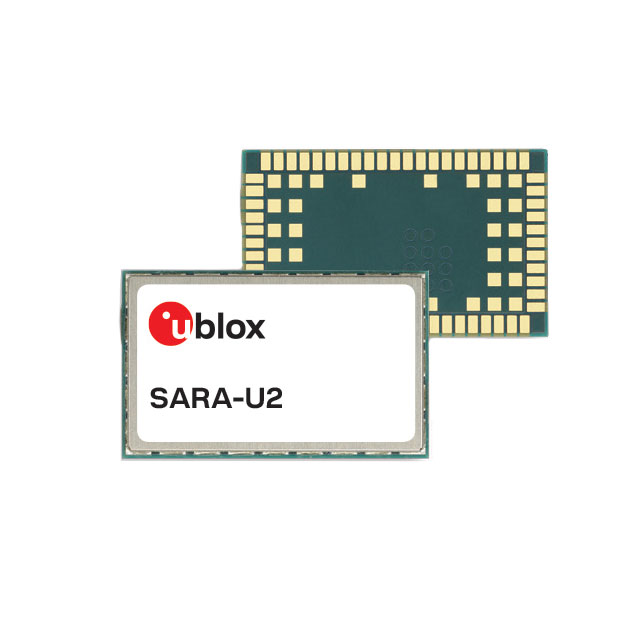

SARA-U260-00S

Obsolete

u-blox

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF TXRX MODULE CELL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular 3G (AT&T) Transceiver Module 850MHz, 1.9GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

RF TXRX MODULE CELL SMD

Part	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Antenna Type	Current - Receiving	Package / Case	Data Rate	Protocol	Mounting Type	RF Family/Standard	Voltage - Supply	Power - Output
u-blox SARA-U260-03S-01	GPIO, I2C, UART, USB	3.3 V	4.4 V	595 mA	-111 dBm	85 °C	-40 °C	850 MHz, 1900 MHz	Antenna Not Included	595 mA	96-SMD Module	7.2 Mbps	3G (AT&T)	Surface Mount	Cellular
u-blox SARA-U260-00S	SPI, UART			620 mA	-111 dBm	85 °C	-40 °C	850 MHz, 1900 MHz	Antenna Not Included	620 mA	96-SMD Module	7.2 Mbps	3G (AT&T)	Surface Mount	Cellular	3.8 V
u-blox SARA-U260-00S-02	GPIO, I2C, UART, USB	3.3 V	4.4 V	595 mA	-111 dBm	85 °C	-40 °C	850 MHz, 1900 MHz	Antenna Not Included	595 mA	96-SMD Module	7.2 Mbps	3G (AT&T)	Surface Mount	Cellular		24 dBm
