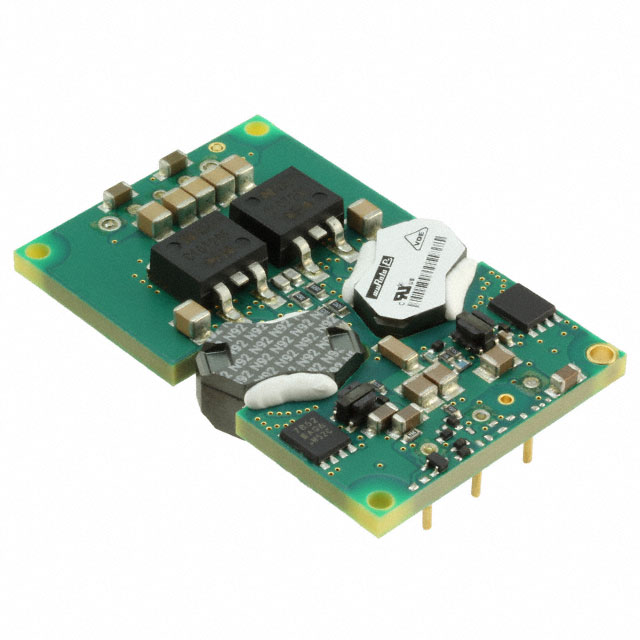

UVQ-48/2.5-D24P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 48V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UVQ-48/2.5-D24P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 48V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UVQ-48/2.5-D24P-C | UVQ-48 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 2.5 A | 2.5 A |
| Efficiency | 91 % | 91 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 120 W | 120 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [z] | 10.7 mm | 10.7 - 12.7 mm |
| Size / Dimension [z] | 0.42 in | 0.42 - 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 2000 V | 2000 V |
| Voltage - Output 1 | 48 V | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 110.29 | |
UVQ-48 Series
DC DC CONVERTER 48V 120W
| Part | Voltage - Input (Min) [Min] | Mounting Type | Type | Features | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Voltage - Output 1 | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Package / Case | Control Features | Voltage - Isolation | Power (Watts) | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UVQ-48/2.5-D24NB-C | 18 V | Through Hole | Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2.5 A | 36.8 mm | 2.3 in | 1.45 in | 12.7 mm | 0.5 in | 58.4 mm | 91 % | 48 V | ITE (Commercial) | -40 °C | 110 °C | 36 V | 1/4 Brick, 8-DIP Module | Active Low, Enable | 2000 V | 120 W | 1 |
Murata Power Solutions Inc. UVQ-48/2.5-D24P-C | 18 V | Through Hole | Isolated Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2.5 A | 36.8 mm | 2.3 in | 1.45 in | 10.7 mm | 0.42 in | 58.4 mm | 91 % | 48 V | ITE (Commercial) | -40 °C | 110 °C | 36 V | 1/4 Brick, 8-DIP Module | Active High, Enable | 2000 V | 120 W | 1 |
Description
General part information
UVQ-48 Series
Isolated Module DC DC Converter 1 Output 48V 2.5A 18V - 36V Input
