476ULG025MFF
ActiveCornell Dubilier Knowles

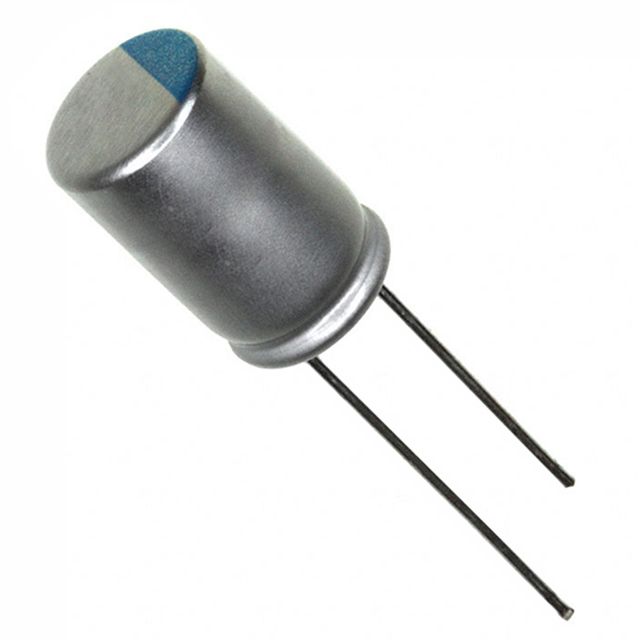

CAP ALUM POLY 47UF 20% 25V TH
476ULG025MFF
ActiveCornell Dubilier Knowles
CAP ALUM POLY 47UF 20% 25V TH
Description
General part information
476ULG025MFF
47 µF 25 V Aluminum - Polymer Capacitors Radial, Can 45mOhm 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 476ULG025MFF |
|---|---|
| Applications | Decoupling |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Height - Seated (Max) | 0.354 in |
| Lead Spacing | 0.138 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 97 mA, 1.94 A |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VAC |
