ANT3216LL15R1575A

Active

Pulse Electronics

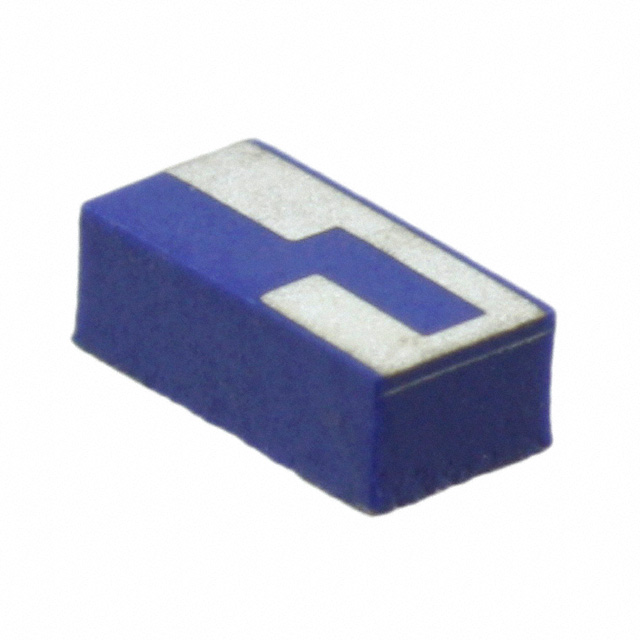

RF ANT 1.575GHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 1.575GHZ CHIP SOLDER SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GPS Chip Solder Surface Mount

Technical documentation and resources

Specification	ANT3216LL15R1575A	ANT3216 Series

Antenna Type	Chip	Chip
Applications	GPS	Wi-Fi, ISM, Bluetooth, 5G, Zigbee™, 4G, GPS
Frequency (Center/Band)	1.575 GHz	1.575 - 5.5 GHz
Frequency Group	UHF	UHF
Frequency Group	-	4 GHz
Frequency Group [Max]	2 GHz	2 - 3 GHz
Frequency Group [Min]	1 GHz	1 - 2 GHz
Frequency Range [Max]	1600 MHz	1600 MHz
Frequency Range [Min]	1550 MHz	1550 MHz
Gain	2.01 dBi	0.45 - 2.23 dBi
Height (Max)	-	0.55 mm
Height (Max) [Max]	0.047 in	0.022 - 0.047 in
Height (Max) [Max]	1.2 mm	1.2 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1 - 2
Power - Max [Max]	1 W	1 W
Return Loss	-10 dB	-10 - 10 dB
RF Family/Standard	Navigation	Bluetooth, Cellular, 802.15.4, General ISM, WiFi, Navigation
Termination	Solder	Solder

Part	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss	Gain	Termination	Antenna Type	Power - Max [Max]	Number of Bands	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Frequency Group
Pulse Electronics ANT3216A063R2455A	Surface Mount	0.022 in	0.55 mm	10 dB	1.59 dBi, 2.23 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	ISM, Wi-Fi	4 GHz	2 GHz	3 GHz
Pulse Electronics ANT3216LL11R2455A	Surface Mount	0.047 in		6.5 dB	0.45 dBi, 0.64 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™	4 GHz	2 GHz	3 GHz	1.2 mm	802.15.4, Bluetooth, Cellular, General ISM, WiFi
Pulse Electronics ANT3216LL15R1575A	Surface Mount	0.047 in		-10 dB	2.01 dBi	Solder	Chip	1 W	1	1.575 GHz	GPS		1 GHz	2 GHz	1.2 mm	Navigation	1600 MHz	1550 MHz	UHF
