Specification	S1DX-A2C60S-AC120V

Circuit	DPDT (2 Form C)
Contact Rating (Current)	7 A
Delay Time (Maximum)	60 Sec
Delay Time (Minimum)	0.05 Min
Function	On-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply (Maximum)	120 V
Voltage - Supply (Minimum)	100 VAC

S1DX-A Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Function	Relay Type	Contact Rating (Current)	Termination Style	Timing Adjustment Method	Delay Time (Minimum)	Delay Time (Maximum)	Circuit	Timing Initiate Method	Mounting Type	Voltage - Supply
Panasonic Industrial Automation Sales S1DX-A2C30S-AC240V	220 V	240 VAC	On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	1 Min	30 Min	DPDT (2 Form C)	Input Voltage	Socketable
Panasonic Industrial Automation Sales S1DX-A2C60M-AC120V	100 VAC	120 V	On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	3 Min	60 Min	DPDT (2 Form C)	Input Voltage	Socketable

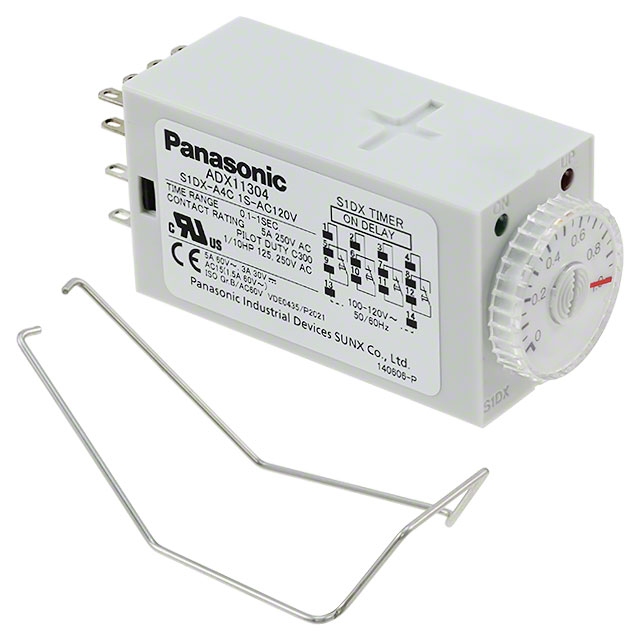

Panasonic Industrial Automation Sales S1DX-A4C1S-AC120V	100 VAC	120 V	On-Delay	Mechanical Relay	5 A	Plug In	Hand Dial	0.1 Sec	1 Sec	4PDT (4 Form C)	Input Voltage	Socketable
Panasonic Industrial Automation Sales S1DX-A2C10M-AC120V	100 VAC	120 V	On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	30 Sec	10 Min	DPDT (2 Form C)	Input Voltage	Socketable
Panasonic Industrial Automation Sales S1DX-A2C30S-DC24V			On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	1 Sec	30 Sec	DPDT (2 Form C)	Input Voltage	Socketable	24 VDC
Panasonic Industrial Automation Sales S1DX-A2C5S-DC24V			On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	0.2 Sec	5 Sec	DPDT (2 Form C)	Input Voltage	Socketable	24 VDC
Panasonic Industrial Automation Sales S1DX-A2C10S-DC24V			On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	0.5 Sec	10 Sec	DPDT (2 Form C)	Input Voltage	Socketable	24 VDC
Panasonic Industrial Automation Sales S1DX-A4C5S-DC24V			On-Delay	Mechanical Relay	5 A	Plug In	Hand Dial	0.2 Sec	5 Sec	4PDT (4 Form C)	Input Voltage	Socketable	24 VDC
Panasonic Industrial Automation Sales S1DX-A2C10S-AC24V			On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	0.5 Sec	10 Sec	DPDT (2 Form C)	Input Voltage	Socketable	24 VDC
Panasonic Industrial Automation Sales S1DX-A2C1S-AC120V	100 VAC	120 V	On-Delay	Mechanical Relay	7 A	Plug In	Hand Dial	0.1 Sec	1 Sec	DPDT (2 Form C)	Input Voltage	Socketable
