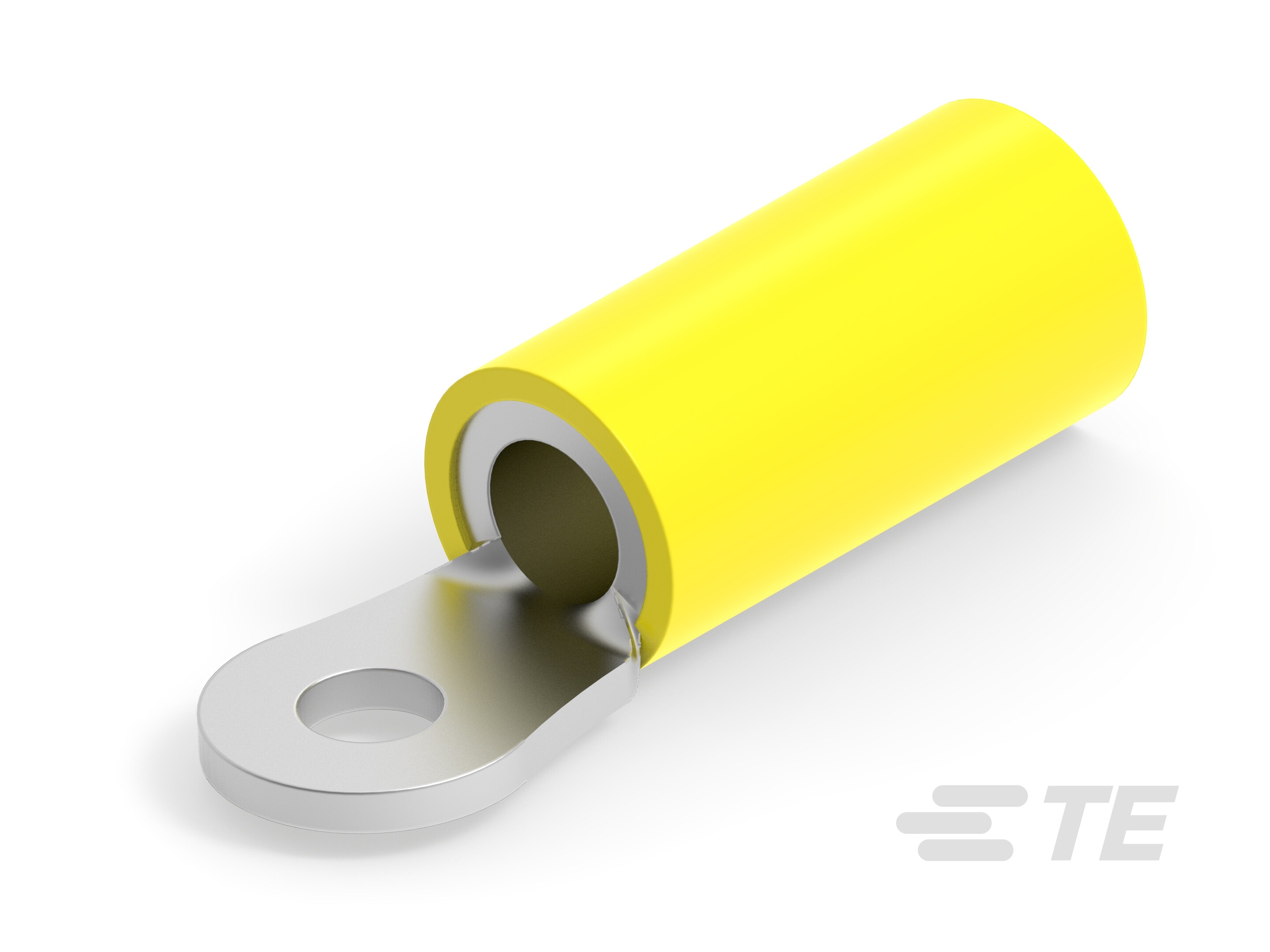

TERMINAL,PG R 12-10 4-34835

34835

Active
TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG #4 CRIMP

Find alt
TERMINAL,PG R 12-10 4-34835

34835

Active
TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG #4 CRIMP

Find alt

Description

General part information

34835

Closed Ring Tongue Terminal, 12 – 10 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification34835
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.953 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size4 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.039 in
Width - Outer Edges0.281 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
