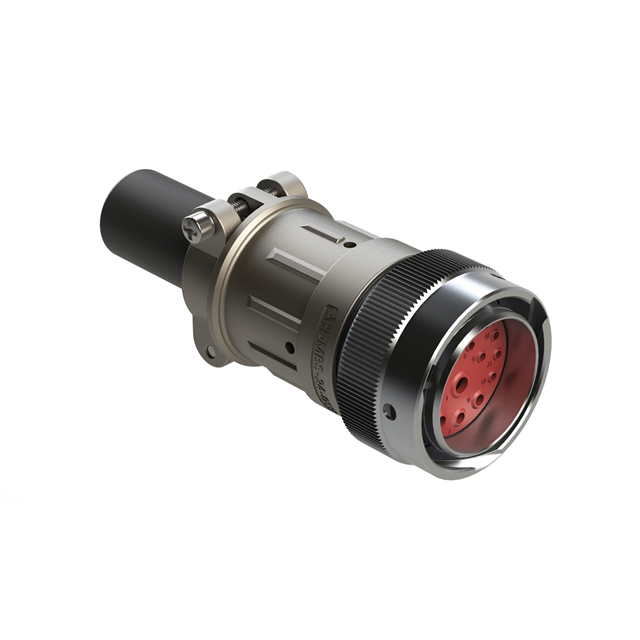

Specification	AHDM06-24-18PR-059

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8, 16, 12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Cable Clamp, Backshell
Housing Color	Silver
Includes	Connector, Backshell
Includes Total Count	2 pcs
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert Length	24 mm
Shell Size - Insert Width	18 mm
Shielding	Unshielded
Type	For Male Pins

AHDM06 Series

...

Part	Shell Finish	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Fastening Type	Connector Type	Shell Material	Shell Size - Insert Width	Shell Size - Insert Length	Housing Color	Note	Ingress Protection IP Rating	Ingress Protection Description	Insert Material	Contact Size	Number of Positions	Orientation	Features	Includes Total Count	Includes	Type	Contact Shape	Mounting Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)
McGill Microwave Systems AHDM06-24-19SR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	19 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	12 16	19	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Female Sockets	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-24-19PN	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	19 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	12 16	19	Keyed	Coupling Nut			For Male Pins	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-18-20PR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy			Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 20	20	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Male Pins	Circular	Free Hanging (In-Line)	18	20
McGill Microwave Systems AHDM06-24-23PR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	23 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 S	23	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Male Pins	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-18-08PR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	8 mm	18 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	12	8	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Male Pins	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-24-47PR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy			Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 20	47	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Male Pins	Circular	Free Hanging (In-Line)	24	47
McGill Microwave Systems AHDM06-24-21SR	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	21 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	12 16	21	Keyed	Coupling Nut			For Female Sockets	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-24-07SN	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	7 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	8 12	7	Keyed	Coupling Nut			For Female Sockets	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-24-18SR-059	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy	18 mm	24 mm	Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	8 12 16	18	Keyed	Backshell Cable Clamp Coupling Nut	2 pcs	Backshell Connector	For Female Sockets	Circular	Free Hanging (In-Line)
McGill Microwave Systems AHDM06-18-20SN	Nickel	Crimp	125 °C	-55 °C	Unshielded	Bayonet Lock	Plug Housing	Zinc Alloy			Silver	Contacts Not Included	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 20	20	Keyed	Coupling Nut			For Female Sockets	Circular	Free Hanging (In-Line)	18	20
