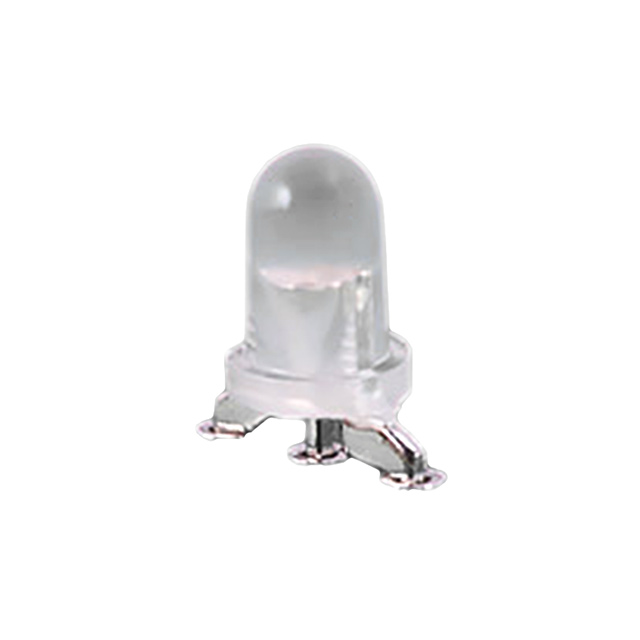

1.8GD

Active

Bivar Inc.

GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN,DIFFUSED,LED-2C

Search across all available documentation for this part.

Active

Bivar Inc.

GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN,DIFFUSED,LED-2C

Technical Specifications

Parameters and characteristics commom to parts in this series

GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN,DIFFUSED,LED-2C

Part	Color	Height (Max) [Max] [z]	Package / Case	Wavelength - Peak	Configuration	Viewing Angle	Current - Test	Lens Color	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Size [diameter]	Supplier Device Package	Millicandela Rating	Mounting Type	Lens Transparency
Bivar Inc. 1.8GD	Green	3 mm	Radial	568 nm	Standard	50 °	20 mA	Green	2.1 V	Round with Domed Top	1.8 mm	1.8mm Discrete LED	20 mcd	Through Hole	Diffused
Bivar Inc. 1.8GDL	Green	3 mm	Radial	568 nm	Standard	50 °	2 mA	Green	2.1 V	Round with Domed Top	1.8 mm	1.8mm Discrete LED	2 mcd	Through Hole	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2.1V Radial
