10-471-K6

Active

Coax Connectors Ltd

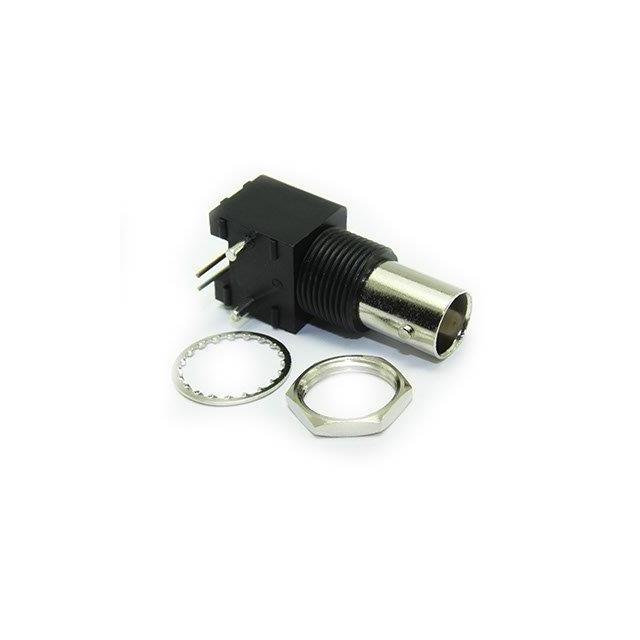

BNC R/A PCB MOUNT BH JACK LOW PR

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC R/A PCB MOUNT BH JACK LOW PR

Technical Specifications

Parameters and characteristics for this part

Specification	10-471-K6

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	250
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

BNC R/A PCB MOUNT BH JACK LOW PR

Part	Mounting Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Ports	Body Finish	Ingress Protection	Housing Color	Shield Termination	Impedance	Connector Style	Center Contact Plating	Fastening Type	Contact Termination	Mating Cycles	Frequency - Max [Max]	Body Material	Center Contact Material	Dielectric Material
Coax Connectors Ltd 10-471-K6	Panel Mount, Right Angle, Through Hole	Bulkhead - Front Side Nut	155 °C	-55 °C	Female Socket, Jack	1	Nickel	IP64 - Dust Tight, Water Resistant	Silver	Solder	75 Ohms	BNC	Gold	Bayonet Lock	Solder	250	1 GHz	Brass	Phosphor Bronze	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
