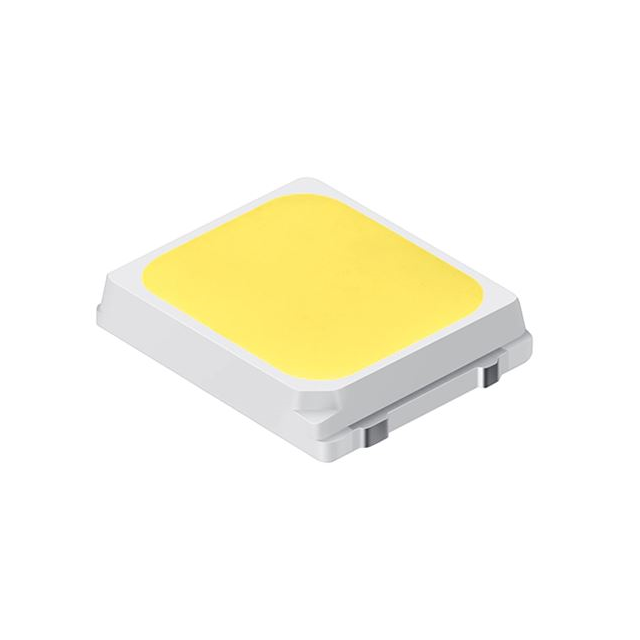

SPMWH1228MD7WARMVL

Samsung Semiconductor, Inc.

LED LM281B+ COOL WHT 5000K 1411

Deep-Dive with AI

Search across all available documentation for this part.

SPMWH1228MD7WARMVL

Samsung Semiconductor, Inc.

LED LM281B+ COOL WHT 5000K 1411

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.27
		10	$ 0.15
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.06
		2000	$ 0.06
	Digi-Reel®	1	$ 0.27
		10	$ 0.15
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.06
		2000	$ 0.06
	Tape & Reel (TR)	4000	$ 0.05
		8000	$ 0.05
		12000	$ 0.04
		20000	$ 0.04
		28000	$ 0.04
		40000	$ 0.04
		100000	$ 0.04
		200000	$ 0.04

Description

General part information

SPMWH1228MD Series

LED Lighting LM281B+Pro White, Cool 5000K 2.8V 65mA 120° 1411 (3528 Metric)

Documents

Technical documentation and resources

No documents available

Specification	SPMWH1228MD7WARMVL	SPMWH1228MD Series

CCT (K)	5000 K	2700 - 6500 K
Color	Cool, White	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	90	80 - 90
Current - Max [Max]	250 mA	250 - 300 mA
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	-	31 - 38 lm
Flux @ 25°C, Current - Test	-	31 - 33 lm
Flux @ 25°C, Current - Test [Max]	34 lm	31 - 38 lm
Flux @ 25°C, Current - Test [Min]	32 lm	29 - 36 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Lumens/Watt @ Current - Test	181 lm/W	170 - 217 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1411	1411
Package / Case	3528 Metric	3528 Metric
Size / Dimension [x]	0.138 "	0.13 - 3.3 in
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [y]	0.11 in	0.11 - 2.8 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	1411	1411
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.8 V	2.7 - 2.8 V

Part

Thermal Resistance of Package [custom]

Size / Dimension [x]

Size / Dimension [y]

Voltage - Forward (Vf) (Typ)

Flux @ 25°C, Current - Test [Min]

Flux @ 25°C, Current - Test [Max]

Current - Max [Max]

Viewing Angle

Height - Seated (Max) [Max] [z]

Mounting Type

Supplier Device Package

Lumens/Watt @ Current - Test

CRI (Color Rendering Index)

Current - Test

Color

Package / Case

CCT (K)

Flux @ 25°C, Current - Test

Size / Dimension [y]

Size / Dimension [x]

Samsung Semiconductor, Inc.

SPMWH1228MD7WARUVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.8 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

181 lm/W

65 mA

Cool, White

1411

3528 Metric

Samsung Semiconductor, Inc.

SPMWH1228MD7WNRMVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.7 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

188 lm/W

65 mA

Cool, White

1411

3528 Metric

5000 K

Samsung Semiconductor, Inc.

SPMWH1228MD7WAT0VL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.8 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

181 lm/W

65 mA

Neutral, White

1411

3528 Metric

4000 K

Samsung Semiconductor, Inc.

SPMWH1228MD7WAPUVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.8 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

181 lm/W

65 mA

Cool, White

1411

3528 Metric

6500 K

Samsung Semiconductor, Inc.

SPMWH1228MD7WAQYVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.8 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

181 lm/W

65 mA

Cool, White

1411

3528 Metric

5700 K

Samsung Semiconductor, Inc.

SPMWH1228MD5WAR0VL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.8 V

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

209 lm/W

65 mA

Cool, White

1411

3528 Metric

5000 K

38 lm

Samsung Semiconductor, Inc.

SPMWH1228MD5WNPMVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.7 V

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

217 lm/W

65 mA

Cool, White

1411

3528 Metric

6500 K

38 lm

Samsung Semiconductor, Inc.

SPMWH1228MD7WNWUVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.7 V

29 lm

31 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

171 lm/W

65 mA

Warm, White

1411

3528 Metric

2700 K

Samsung Semiconductor, Inc.

SPMWH1228MD7WNRUVL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.7 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

188 lm/W

65 mA

Cool, White

1411

3528 Metric

Samsung Semiconductor, Inc.

SPMWH1228MD7WNR0VL

12 °C/W

0.13 in, 3.3 mm

0.11 in, 2.8 mm

2.7 V

32 lm

34 lm

300 mA

120 °

0.8 mm

0.031 "

Surface Mount

1411

188 lm/W

65 mA

Cool, White

1411

3528 Metric

5000 K

Part	Thermal Resistance of Package [custom]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Current - Max [Max]	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Supplier Device Package	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Current - Test	Color	Package / Case	Package / Case	CCT (K)	Flux @ 25°C, Current - Test
Samsung Semiconductor, Inc. SPMWH1228MD7WARUVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.8 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	181 lm/W	90	65 mA	Cool, White	1411	3528 Metric
Samsung Semiconductor, Inc. SPMWH1228MD7WNRMVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.7 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	188 lm/W	90	65 mA	Cool, White	1411	3528 Metric	5000 K
Samsung Semiconductor, Inc. SPMWH1228MD7WAT0VL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.8 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	181 lm/W	90	65 mA	Neutral, White	1411	3528 Metric	4000 K
Samsung Semiconductor, Inc. SPMWH1228MD7WAPUVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.8 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	181 lm/W	90	65 mA	Cool, White	1411	3528 Metric	6500 K
Samsung Semiconductor, Inc. SPMWH1228MD7WAQYVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.8 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	181 lm/W	90	65 mA	Cool, White	1411	3528 Metric	5700 K
Samsung Semiconductor, Inc. SPMWH1228MD5WAR0VL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.8 V			300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	209 lm/W	80	65 mA	Cool, White	1411	3528 Metric	5000 K	38 lm
Samsung Semiconductor, Inc. SPMWH1228MD5WNPMVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.7 V			300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	217 lm/W	80	65 mA	Cool, White	1411	3528 Metric	6500 K	38 lm
Samsung Semiconductor, Inc. SPMWH1228MD7WNWUVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.7 V	29 lm	31 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	171 lm/W	90	65 mA	Warm, White	1411	3528 Metric	2700 K
Samsung Semiconductor, Inc. SPMWH1228MD7WNRUVL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.7 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	188 lm/W	90	65 mA	Cool, White	1411	3528 Metric
Samsung Semiconductor, Inc. SPMWH1228MD7WNR0VL	12 °C/W	0.13 in, 3.3 mm	0.11 in, 2.8 mm	2.7 V	32 lm	34 lm	300 mA	120 °	0.8 mm	0.031 "	Surface Mount	1411	188 lm/W	90	65 mA	Cool, White	1411	3528 Metric	5000 K
