Description
General part information

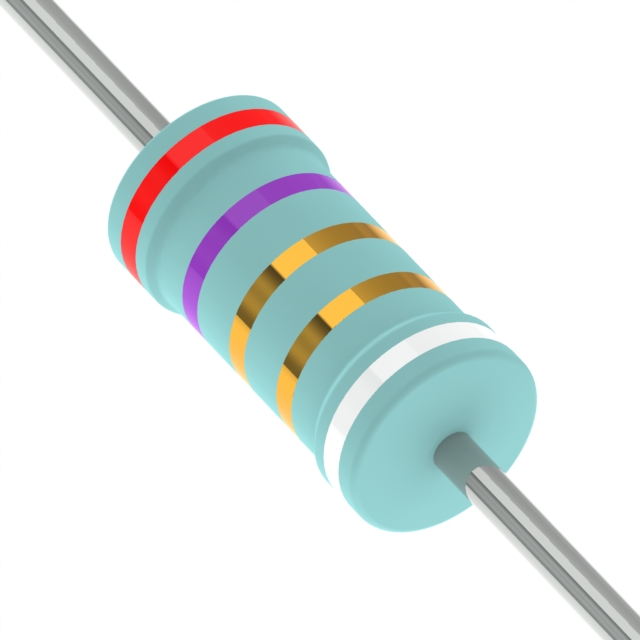

FKN200JR-73-2R7
2.7 Ohms ±5% 2W Through Hole Resistor Axial Flame Proof, Fusible, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | FKN200JR-73-2R7 |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 2.7 Ohm |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.61 in |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
