MFU0603FF05000P100
ActiveVishay Dale

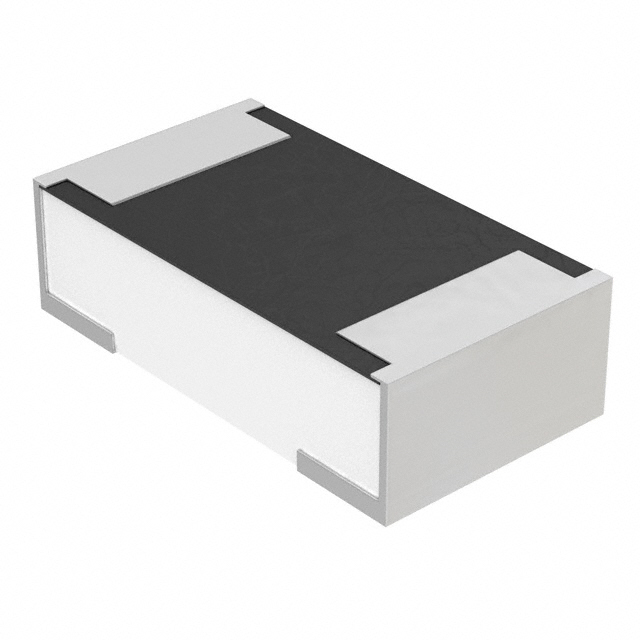

FUSE, SURFACE MOUNT, THIN FILM, 5 A, FAST ACTING, 32 VDC, 0603 [1608 METRIC], MFU SERIES
MFU0603FF05000P100
ActiveVishay Dale
FUSE, SURFACE MOUNT, THIN FILM, 5 A, FAST ACTING, 32 VDC, 0603 [1608 METRIC], MFU SERIES
Description
General part information
MFU0603FF05000P100
5 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MFU0603FF05000P100 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity | 50 A |
| Current Rating | 5 A |
| DC Cold Resistance | 0.013 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.2275 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.018 in |
| Size / Dimension Length | 0.061 in |
| Size / Dimension Width | 0.033 in |
| Voltage Rating - DC | 32 V |
