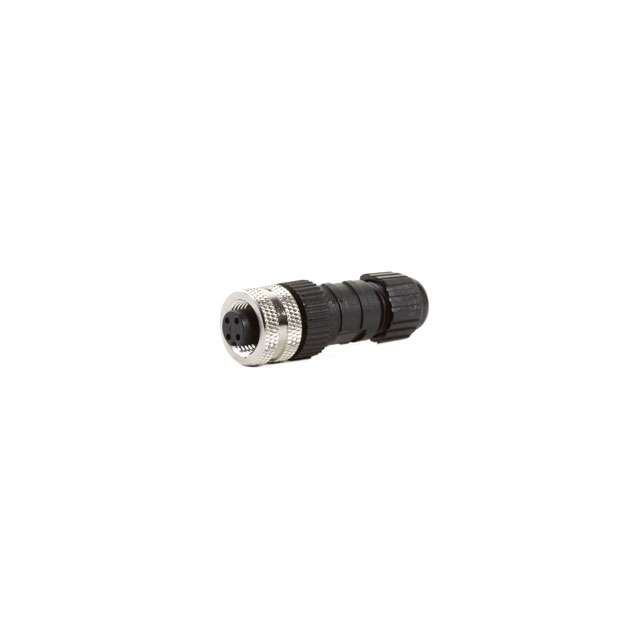

IPM12-A4F-SCFT

Active

Sure-Seal

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

IPM12-A4F-SCFT

Active

Sure-Seal

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPM12-A4F-SCFT

Applications	Industrial
Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [custom]	0.217 in, 0.157 in
Cable Opening [custom]	5.5 mm, 4 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Thermoplastic Polyurethane (TPU)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Unshielded
Voltage Rating	250 VAC

IPM Series

Part	Shell Size - Insert	Accessory Type	For Use With/Related Products	Color	Material	Features	Insert Material	Mounting Type	Orientation	Shielding	Primary Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Applications	Backshell Material, Plating	Connector Type	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Shell Material	1st Connector Orientation	1st Connector Type	Cable Type	Usage	2nd Connector Mounting Type	Length [x]	Length [x]	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	1st Connector Gender	1st Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Type	2nd Connector Shell Size - Insert	Cable Material	2nd Connector Gender	Assembly Configuration	Termination	Mounting Feature	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Sure-Seal IPM12-CAP-F-CA	M12	Cap (Cover) Protective	M12 Female Connector	Black	Glass Filled Nylon Polyamide (PA)	Contains Strap Dust Tight Internal Threads Waterproof
Sure-Seal IPM12-A8M-SCFT	M12-8			Black Silver		Backshell	Thermoplastic Polyurethane (TPU)	Free Hanging (In-Line)	A	Unshielded	Metal	Nickel	0.157 in 0.217 in	4 mm 5.5 mm	IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	30 VAC	Industrial	Glass Filled Nylon Polyamide (PA)	Male Pins Receptacle	8	Gold	2 A	Brass
Sure-Seal IPM12-A8-FM-3.0				Black						Unshielded					IP67 - Dust Tight Waterproof												A	Receptacle	Round	Industrial Environments	Free Hanging (In-Line)	9.84 ft	3 m	All	8	Male Pins	M12	Free Hanging (In-Line)	8 positions	All	Plug	M12	Polyvinyl Chloride (PVC)	Female Sockets	Standard
Sure-Seal IPM12-A5-FWL-3.0				Black						Unshielded					IP67 - Dust Tight Waterproof												A	Plug	Round	Industrial Environments		9.84 ft	3 m	All		Female Sockets	M12	Free Hanging (In-Line)	5		Wire Leads		Polyvinyl Chloride (PVC)		Standard
Sure-Seal IPM8-A6F-PC	M8-6			Silver			Thermoplastic Polyurethane (TPU)	Panel Mount Through Hole	A	Unshielded	Metal	Nickel			IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	30 VAC	Industrial		Female Sockets Plug	6	Gold		Brass																				Solder	Bulkhead - Front Side Nut
Sure-Seal IPM12-A8F-PC-3	M12-8			Silver			Polyamide (PA) Nylon Glass Filled	Panel Mount Through Hole	A	Unshielded	Metal	Nickel			IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	30 VAC	Industrial		Female Sockets Plug	8	Gold	2 A	Brass																				Solder	Bulkhead - Front Side Nut
Sure-Seal IPM12-A4F-SC-3	M12-4			Silver			Polyamide (PA) Nylon Glass Filled		A	Unshielded	Metal	Nickel			IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	250 VAC	Industrial		Female Sockets Plug	4	Gold	4 A	Brass																					Bulkhead - Front Side Nut
Sure-Seal IPM12-A4FRA-SRFT-3	M12-4			Black Silver		Backshell Coupling Nut	Thermoplastic Polyurethane (TPU)	Free Hanging (In-Line) Right Angle	A	Unshielded	Metal	Anodized			IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	250 VAC	Industrial	Glass Filled Nylon Polyamide (PA)	Female Sockets Plug	4	Gold	4 A	Aluminum Alloy																				Screw		8 mm	6 mm	0.315 in	0.236 in
Sure-Seal IPM12-A5-FRAM-3.0				Black						Unshielded					IP67 - Dust Tight Waterproof												A	Receptacle	Round	Industrial Environments	Free Hanging (In-Line)	9.84 ft	3 m	All	5	Male Pins	M12	Free Hanging (In-Line)	5	All	Plug Right Angle	M12	Polyvinyl Chloride (PVC)	Female Sockets	Standard
Sure-Seal IPM8-A4M-SCFT	M8-4			Black Silver		Backshell Coupling Nut	Thermoplastic Polyurethane (TPU)	Free Hanging (In-Line)	A	Unshielded	Metal	Nickel			IP67 - Dust Tight Waterproof	Brass	90 °C	-25 °C	30 VAC	Industrial	Thermoplastic Polyurethane (TPU)	Male Pins Receptacle	4	Gold	3 A	Brass																										5 mm	3.5 mm	0.197 in	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.54

Description

General part information

IPM Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
