83322E 009100
ActiveBelden Inc.

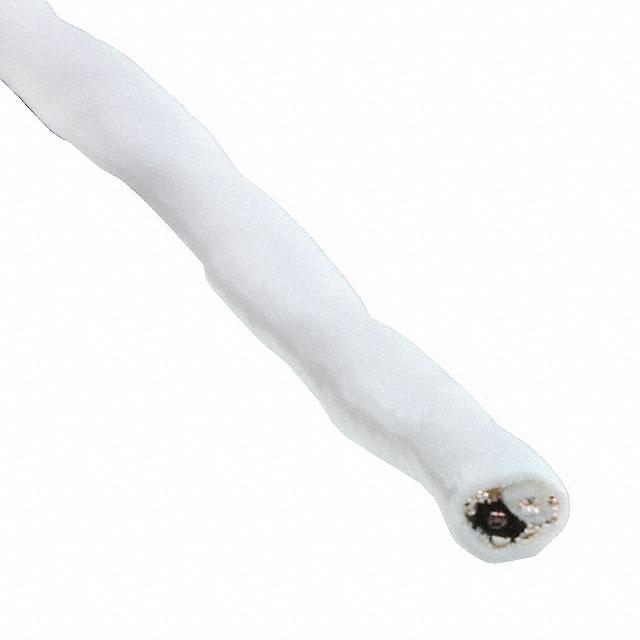

CABLE 2CON 16AWG WHITE SHLD
Deep-Dive with AI
Search across all available documentation for this part.
83322E 009100
ActiveBelden Inc.
CABLE 2CON 16AWG WHITE SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 83322E 009100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 29 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.197 in |
| Jacket (Insulation) Diameter [diameter] | 5 mm |
| Jacket (Insulation) Material | Tetrafluoroethylene (TFE) |
| Jacket (Insulation) Thickness | 0.279 mm |
| Jacket (Insulation) Thickness | 0.011 in |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Coverage | 85 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 14.65 | |
| 200 | $ 13.92 | |||
| 300 | $ 13.51 | |||
| 500 | $ 13.00 | |||
| 700 | $ 12.67 | |||
Description
General part information
83322E Series
2 Conductor Multi-Conductor Cable White 16 AWG Braid 100.0' (30.5m)
