Part	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Cable Opening (Min)	Cable Opening (Max)	Mounting Type	Number of Positions	Position Types	Material Flammability Rating	Connector Type	Orientation	Termination	Features	Fastening Type	Voltage Rating (DC)	Voltage Rating (AC)	Contact Finish - Mating	Color	Current Rating	Shell Material	Shell Size - Insert	Backshell Material, Plating	Contact Finish Thickness - Mating	Insert Material	Contact Material	Applications	For Use With/Related Products	Accessory Type	Shell Size - Insert	Contact Shape	Shielding	Housing Color	Mounting Feature	Includes Total Count	Includes	Type	Contact Type	Note
Hirose Electric Co Ltd HR30-6PA-6P(71)	Plastic	Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C	0.138 in	0.169 in	Free Hanging (In-Line)	6	Power	UL94 V-0	Male Pins Plug	Keyed	Solder Cup	Backshell Strain Relief	Push-Pull	140 VDC	100 VAC	Gold	Black	2 A	Polybutylene Terephthalate (PBT)	6	Polybutylene Terephthalate (PBT)	8 µin	Polyphenylene Sulfide PPS	Brass	Industrial Marine Medical
Hirose Electric Co Ltd HR30-7P-12SC-T01																													Circular Connectors	Termination Fixture
Hirose Electric Co Ltd HR30-7J-12P(71)	Plastic	Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C	0.244 in	0.276 in	Free Hanging (In-Line)	12	Power	UL94 V-0	Jack Male Pins	Keyed	Solder Cup	Backshell Strain Relief	Push-Pull	42 VDC	30 VAC	Gold	Black	2 A	Polyphenylene Sulfide (PPS)	7	Polyphenylene Sulfide (PPS)	8 µin	Polyphenylene Sulfide PPS	Copper Alloy	Industrial Marine Medical			7
Hirose Electric Co Ltd HR30-7R-12PC		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Panel Mount	12		UL94 V-0	Receptacle Housing	Keyed			Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black	Bulkhead Rear Side Nut	4 pcs	Connector Gasket Lockwasher Nut	For Male Pins	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR30-7R-10PC		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Panel Mount	10		UL94 V-0	Receptacle Housing	Keyed			Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black	Bulkhead Rear Side Nut	4 pcs	Connector Gasket Lockwasher Nut	For Male Pins	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR30-7R-10PC(71)		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Panel Mount	10		UL94 V-0	Receptacle Housing	Keyed			Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black	Bulkhead Rear Side Nut	4 pcs	Connector Gasket Lockwasher Nut	For Male Pins	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR30-6PA-6S
Hirose Electric Co Ltd HR30-7R-12PC(71)		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Panel Mount	12		UL94 V-0	Receptacle Housing	Keyed			Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black	Bulkhead Rear Side Nut	4 pcs	Connector Gasket Lockwasher Nut	For Male Pins	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR30-7JB-12PC		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Free Hanging (In-Line)	12		UL94 V-0	Jack Housing	Keyed		Backshell Strain Relief	Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black		4 pcs	Backshell Connector Nut O-Ring	For Male Pins	Crimp	Contacts Not Included
Hirose Electric Co Ltd HR30-7PB-12SC		Dust Tight Waterproof	IP67 IP68	85 °C	-25 °C			Free Hanging (In-Line)	12		UL94 V-0	Plug Housing	Keyed		Backshell Strain Relief	Push-Pull						Polyphenylene Sulfide (PPS)	7			Polyphenylene Sulfide PPS					7	Square	Unshielded	Black		4 pcs	Backshell Connector Spring	For Female Sockets	Crimp	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

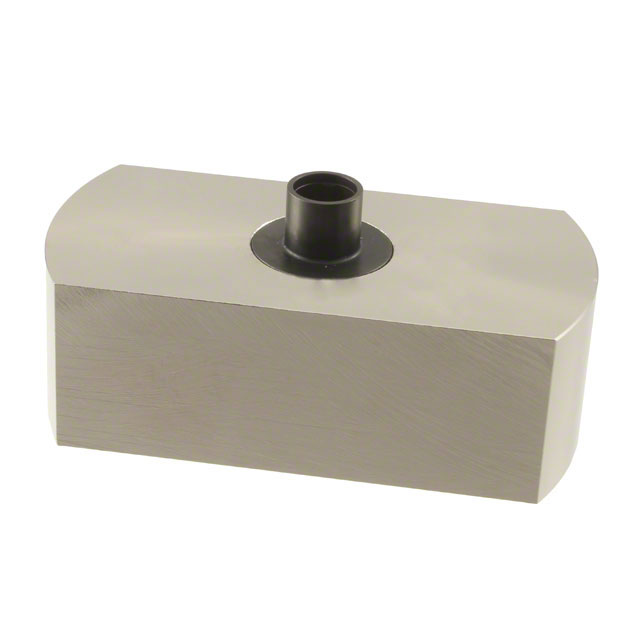

HR30-8J-12SC-T01 | Datasheet
