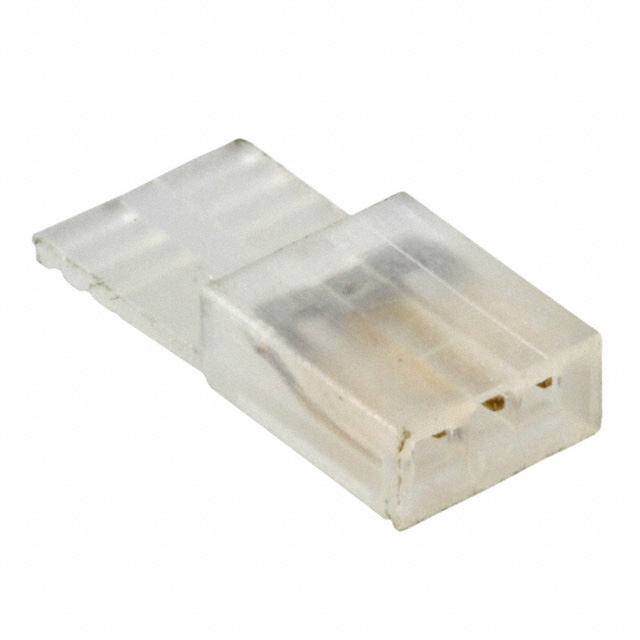

Specification	881545-5

Color	Natural
Contact Finish	Gold
Contact Finish Thickness	15 µin
Current Rating	3 A
Gender	Female Sockets
Grid Columns	2
Grid Rows	1
Height	0.429 in
Housing Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	2
Pitch	0.1 in
Type	Open Top, Grip

Modu Connector System Series

...

Part	Connector Type	Contact Finish Thickness - Mating	Insulation Color	Material Flammability Rating	Current Rating	Contact Finish - Post	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Number of Positions	Pitch - Mating	Termination	Row Spacing - Mating	Number of Positions Loaded	Contact Type	Number of Rows	Mounting Type	Contact Finish - Mating	Contact Length - Post	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Shape
TE Connectivity AMP Connectors 1-5146140-6	Receptacle	10 µin	Black	UL94 V-0	2 A	Tin	Push-Pull	125 °C	-55 °C	0.238 in	34	0.1 in	Solder	0.1 in	All	Female Socket	2	Right Angle Through Hole	Gold	0.115 in	Glass Filled Polyester	150 µin	Phosphor Bronze	Square
