PQC250-24
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250 W, 90V AC TO 264V AC, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
PQC250-24
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250 W, 90V AC TO 264V AC, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PQC250-24 | PQC250 Series |
|---|---|---|
| Applications | - | ITE (Commercial), Medical, Household Appliances |
| Approval Agency | - | TUV, cCSAus, CB, CE, CCC, BMSI |
| Current - Output 1 | - | 4.6 - 20.8 A |
| Efficiency | - | 95 % |
| Features | - | Load Sharing, PFC, Standby Output, Remote Sense, Universal Input |
| Minimum Load Required | - | False |
| Mounting Type | - | Chassis Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 70 °C |
| Power (Watts) | - | 248 - 250 W |
| Size / Dimension | - | 35.1 mm |
| Size / Dimension | - | 127 mm |
| Size / Dimension | - | 1.38 - 1.39 in |
| Size / Dimension | - | 76.2 mm |
| Size / Dimension | - | 3 " |
| Size / Dimension | - | 5 in |
| Size / Dimension | - | 76.2 mm |
| Size / Dimension | - | 35.2 mm |
| Type | - | Open Frame |
| Voltage - Input | - | 90 VAC |
| Voltage - Input | - | 264 VAC |
| Voltage - Isolation | - | 4000 V |
| Voltage - Output 1 | - | 12 - 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
PQC250 Series
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250 W, 90V AC TO 264V AC, FIXED
| Part | Approval Agency | Power (Watts) | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Type | Voltage - Output 1 | Minimum Load Required | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type | Efficiency | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. PQC250-36 | ||||||||||||||||||||||||
Murata Power Solutions Inc. PQC250-24DRT | CB, CCC, cCSAus, CE, TUV | 250 W | 4000 V | 35.1 mm | 127 mm | 1.38 in | 76.2 mm | 3 " | 5 in | ITE (Commercial), Medical | 90 VAC | 264 VAC | 10.4 A | Open Frame | 24 V | 1 | -10 °C | 70 °C | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 95 % | |||
Murata Power Solutions Inc. PQC250-24 | ||||||||||||||||||||||||
Murata Power Solutions Inc. PQC250-12 | BMSI, CB, CCC, cCSAus, CE, TUV | 250 W | 4000 V | 35.1 mm | 127 mm | 1.38 in | 76.2 mm | 3 " | 5 in | ITE (Commercial), Medical | 90 VAC | 264 VAC | 20.8 A | Open Frame | 12 V | 1 | -10 °C | 70 °C | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 95 % | |||
Murata Power Solutions Inc. PQC250-24D | CB, CCC, cCSAus, CE, TUV | 250 W | 4000 V | 35.1 mm | 127 mm | 1.38 in | 76.2 mm | 3 " | 5 in | ITE (Commercial), Medical | 90 VAC | 264 VAC | 10.4 A | Open Frame | 24 V | 1 | -10 °C | 70 °C | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 95 % | |||
Murata Power Solutions Inc. PQC250-48D | CB, CCC, cCSAus, CE, TUV | 250 W | 4000 V | 35.1 mm | 127 mm | 1.38 in | 76.2 mm | 3 " | 5 in | ITE (Commercial), Medical | 90 VAC | 264 VAC | 5.2 A | Open Frame | 48 V | 1 | -10 °C | 70 °C | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 95 % | |||
Murata Power Solutions Inc. PQC250-24D | ||||||||||||||||||||||||
Murata Power Solutions Inc. PQC250-12 | ||||||||||||||||||||||||
Murata Power Solutions Inc. PQC250-12D | ||||||||||||||||||||||||
Murata Power Solutions Inc. PQC250-36 | CB, CCC, cCSAus, CE, TUV | 250 W | 4000 V | 35.1 mm | 127 mm | 1.38 in | 76.2 mm | 3 " | 5 in | ITE (Commercial), Medical | 90 VAC | 264 VAC | 6.94 A | Open Frame | 36 V | 1 | -10 °C | 70 °C | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 95 % |
Description
General part information
PQC250 Series

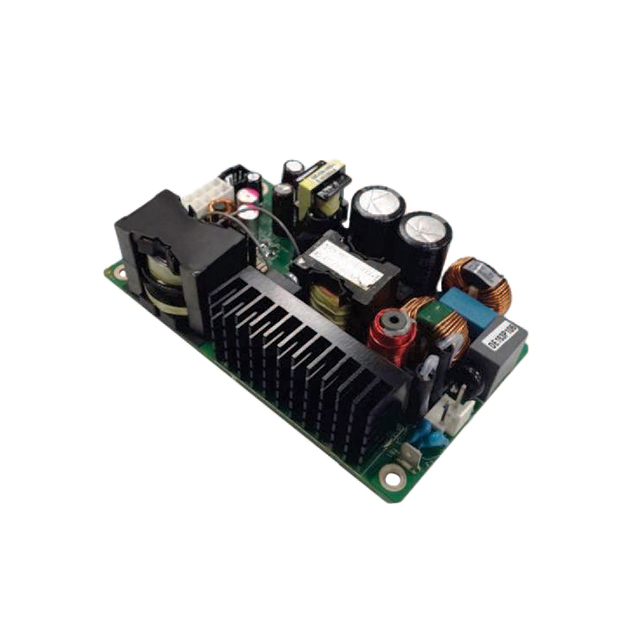

The PQC250-24 from Murata Power Solutions is a PQC250 series 250W convection cooled AC to DC base model power supply. It utilizes advanced component and circuit technologies to deliver high efficiency and low power dissipation in both operational and standby operation in a compact 3" x 5" x 1.4" package. Designed for medical, computing, communications, telecom, industrial, consumer and other OEM applications, deployable in 1U customer systems. It offers universal AC input capability with active power factor correction (PFC) and compliance to worldwide safety and EMC standards. It features very low no load standby power, designed to meet ENERGY STAR® program requirements for single voltage external AC-DC power supply.
