2-822114-4
ObsoleteTE Connectivity AMP Connectors

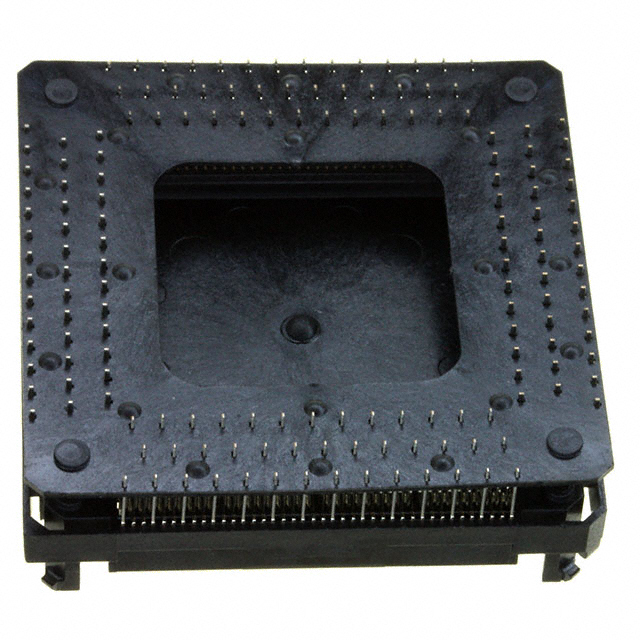

CONN SOCKET PQFP 160POS TIN-LEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-822114-4
ObsoleteTE Connectivity AMP Connectors
CONN SOCKET PQFP 160POS TIN-LEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-822114-4 | 822114 Series |
|---|---|---|
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 5.08 µm | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze |
| Features | Closed Frame | Closed Frame |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 160 | 144 - 160 |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Pitch - Post | 1.27 mm | 1.27 mm |
| Pitch - Post | 0.05 in | 0.05 in |
| Termination | Solder | Solder |
| Termination Post Length | 0.135 in | 0.135 in |
| Termination Post Length | 3.43 mm | 3.43 mm |
| Type | QFP | QFP |
822114 Series
CONN SOCKET PQFP 144POS TIN-LEAD
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Housing Material | Mounting Type | Termination | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Termination Post Length | Termination Post Length | Contact Material - Mating | Contact Finish - Mating | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 822114-3 | 200 µin | 5.08 µm | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Through Hole | Solder | UL94 V-0 | 0.05 in | 1.27 mm | Tin-Lead | Closed Frame | 0.135 in | 3.43 mm | Phosphor Bronze | Tin-Lead | 1.27 mm | 0.05 in | 5.08 µm | 200 µin | QFP | 144 |
TE Connectivity AMP Connectors 2-822114-4 | 200 µin | 5.08 µm | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Through Hole | Solder | UL94 V-0 | 0.05 in | 1.27 mm | Tin-Lead | Closed Frame | 0.135 in | 3.43 mm | Phosphor Bronze | Tin-Lead | 1.27 mm | 0.05 in | 5.08 µm | 200 µin | QFP | 160 |
TE Connectivity AMP Connectors 2-822114-3 | 200 µin | 5.08 µm | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Through Hole | Solder | UL94 V-0 | 0.05 in | 1.27 mm | Tin-Lead | Closed Frame | 0.135 in | 3.43 mm | Phosphor Bronze | Tin-Lead | 1.27 mm | 0.05 in | 5.08 µm | 200 µin | QFP | 144 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
822114 Series
160 (4 x 40) Pos QFP Socket Tin-Lead Through Hole
