SSL-LX25783ID

Active

Lumex Opto/Components Inc.

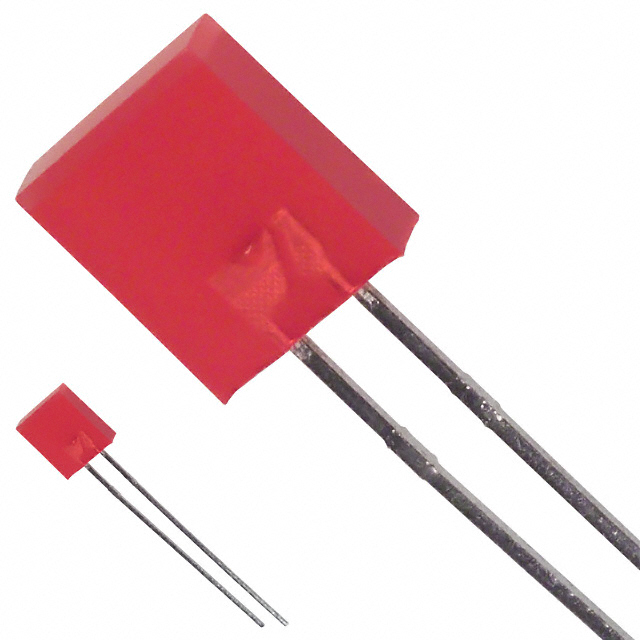

LED RED DIFF RECT 2.3MMX7MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX25783ID

Active

Lumex Opto/Components Inc.

LED RED DIFF RECT 2.3MMX7MM T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.43
		10	$ 0.27
		100	$ 0.15
		1000	$ 0.12
		5000	$ 0.10
		10000	$ 0.09

Description

General part information

SSL-LX25783 Series

Red LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX25783ID	SSL-LX25783 Series

Color	Red	Red, Amber, Green, Yellow
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	8 mm	8 mm
Lens Color	Red	Red, White, Green, Yellow, Amber
Lens Size [x]	7 mm	7 mm
Lens Size [y]	2.3 mm	2.3 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	9 mcd	4 - 160 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	Rectangular 2.3mmx7mm	Rectangular 2.3mmx7mm
Viewing Angle	80 °	80 - 110 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 2.1 V
Wavelength - Peak	635 nm	565 - 660 nm

SSL-LX25783 Series

LED RED DIFF RECT 2.3MMX7MM T/H

Part	Package / Case	Lens Size [x]	Lens Size [y]	Lens Transparency	Viewing Angle	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Color	Current - Test	Height (Max) [Max] [z]	Color	Configuration	Lens Style	Wavelength - Peak	Supplier Device Package	Mounting Type
Lumex Opto/Components Inc. SSL-LX25783ID	Radial	7 mm	2.3 mm	Diffused	80 °	2 V	9 mcd	Red	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	635 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SRW-TD	Radial	7 mm	2.3 mm	Diffused	80 °	1.7 V	37 mcd	White	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	660 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SRD	Radial	7 mm	2.3 mm	Diffused	110 °	1.8 V	50 mcd	Red	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	660 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783AW-TD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	10 mcd	White	20 mA	8 mm	Amber	Standard	Rectangle with Flat Top	605 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783GD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	9 mcd	Green	20 mA	8 mm	Green	Standard	Rectangle with Flat Top	565 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783YD	Radial	7 mm	2.3 mm	Diffused	110 °	2.1 V	4 mcd	Yellow	20 mA	8 mm	Yellow	Standard	Rectangle with Flat Top	585 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SYD	Radial	7 mm	2.3 mm	Diffused	110 °	2.1 V	160 mcd	Yellow	20 mA	8 mm	Yellow	Standard	Rectangle with Flat Top	585 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783AD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	10 mcd	Amber	20 mA	8 mm	Amber	Standard	Rectangle with Flat Top	605 nm	Rectangular 2.3mmx7mm	Through Hole
