Description
General part information
LBD8C03L01
15V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Technical Specifications
Parameters and characteristics for this part
| Specification | LBD8C03L01 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 1 |
| Capacitance | 20 pF |
| Current - Peak Pulse | 8 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

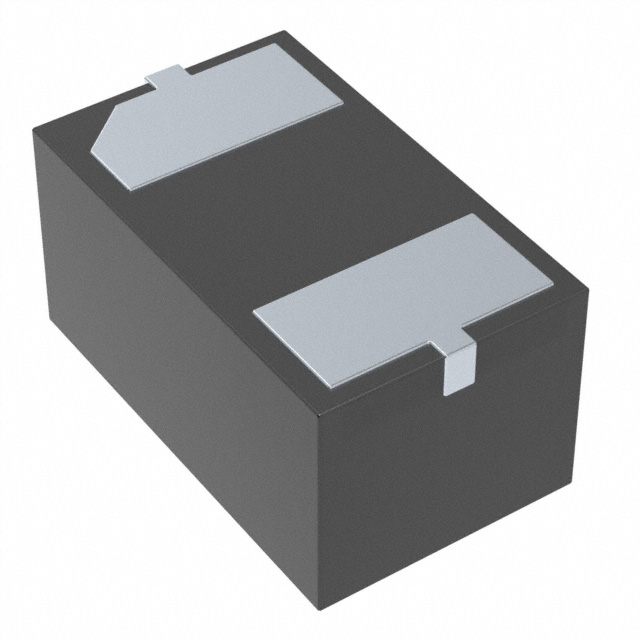

| Package / Case | SOD-882 |
| Package Name | SOD-882 |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 3.8 V |
| Voltage - Clamping (Max) | 15 V |
| Voltage - Reverse Standoff (Max) | 3.3 V |
