917992-6

Active

TE Connectivity Raychem Cable Protection

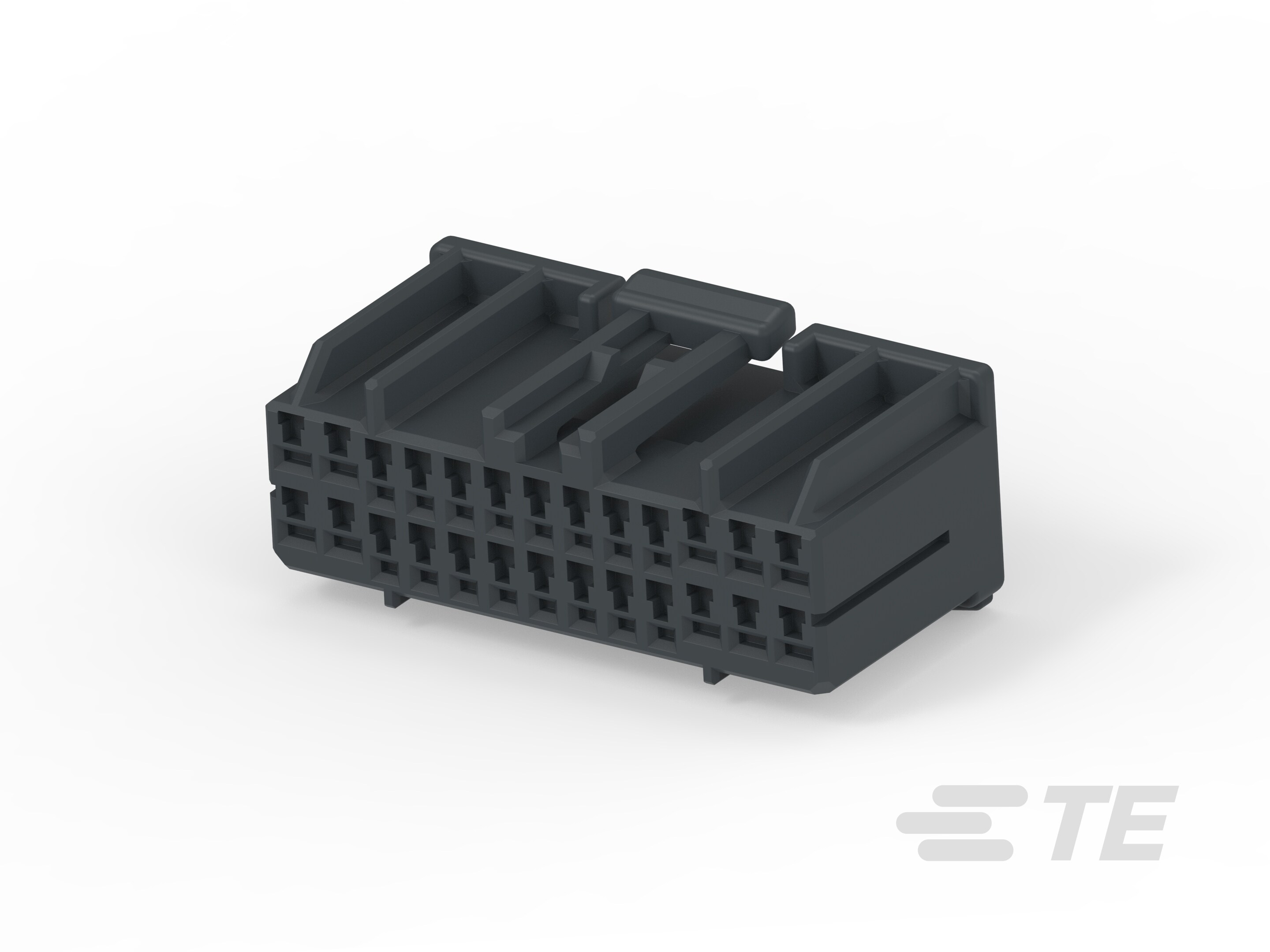

CONN PLUG HSG 26POS

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 26POS

Technical Specifications

Parameters and characteristics for this part

Specification	917992-6

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Row Spacing	0.205 in
Row Spacing	5.2 mm

Part	Insulation Material	Contact Termination	Note	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows	Fastening Type	Color	Row Spacing	Row Spacing	Connector Type
TE Connectivity Raychem Cable Protection 917992-1	Polybutylene Terephthalate (PBT)	Crimp	Contacts Not Included	Free Hanging (In-Line)	Female Socket	-30 ░C	105 ░C	26	2	Latch Lock	White	0.205 in	5.2 mm	Plug
TE Connectivity Raychem Cable Protection 917992-7
TE Connectivity Raychem Cable Protection 917992-6	Polybutylene Terephthalate (PBT)	Crimp	Contacts Not Included	Free Hanging (In-Line)	Female Socket	-30 ░C	105 ░C	26	2	Latch Lock	Gray	0.205 in	5.2 mm	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Rectangular Connectors - Housings Plug Gray
