LDD-SMHTM5604RISIT

Active

Lumex Opto/Components Inc.

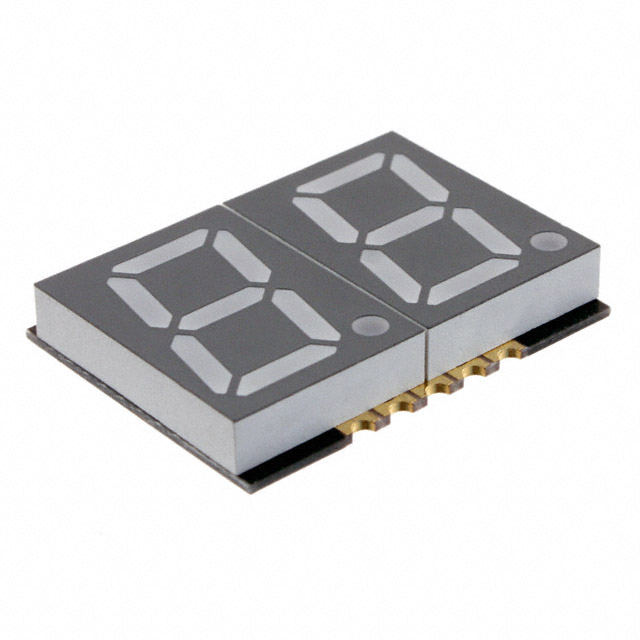

DISPLAY 7SEG 0.56" DBL RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LDD-SMHTM5604RISIT

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.56" DBL RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-SMHTM5604RISIT

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	6 mcd
Number of Characters	2
Package / Case	10-SMD, No Lead
Size / Dimension [x]	0.669 "
Size / Dimension [x]	17 mm
Size / Dimension [y]	0.988 "
Size / Dimension [y]	25.1 mm
Size / Dimension [z]	0.154 in
Size / Dimension [z]	3.9 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak [custom]	640 nm

LDD-SMHTM5604 Series

DISPLAY 7SEG 0.56" DBL RED 10SMD

Part	Digit/Alpha Size	Digit/Alpha Size	Color	Common Pin	Package / Case	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Number of Characters	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Wavelength - Peak [custom]	Display Type	Current - Test
Lumex Opto/Components Inc. LDD-SMHTM5604RISIT	0.56 in	14.22 mm	Red	Common Anode	10-SMD, No Lead	6 mcd	1.95 V	2	0.154 in	0.669 "	0.988 "	25.1 mm	3.9 mm	17 mm	640 nm	7-Segment	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDD-SMHTM5604 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.95V 20mA 0.669" H x 0.988" W x 0.154" D (17.00mm x 25.10mm x 3.90mm) 10-SMD, No Lead
