XF-01500-2120
ActiveAmgis, LLC

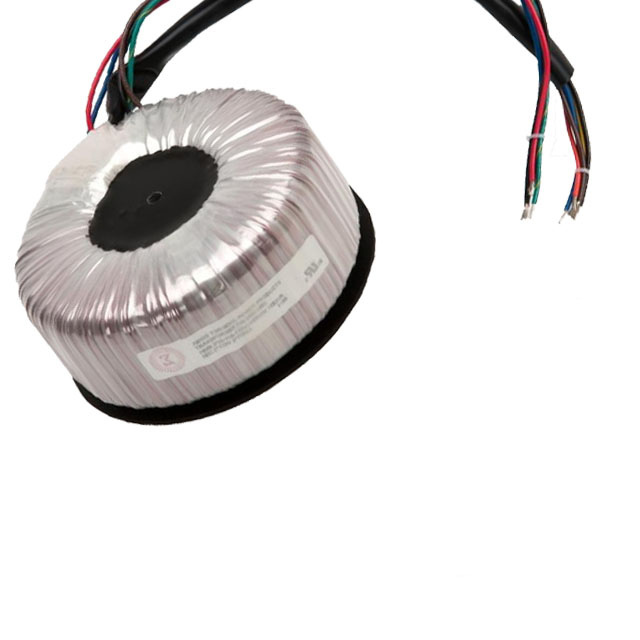

PWR XFMR TOROIDAL 1500VA CHAS MT
XF-01500-2120
ActiveAmgis, LLC
PWR XFMR TOROIDAL 1500VA CHAS MT
Description
General part information
XF-01500-2120
PWR XFMR TOROIDAL 1500VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | XF-01500-2120 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 12.5 A |
| Current - Output (Max) Series | 6.25 A |
| Height - Seated (Max) | 76.2 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 1.5 kW |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Diameter | 208.28 mm |
| Termination Style | Wire Leads |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 117 V |
| Voltage - Secondary (Full Load) (Parallel) | 117 V |
| Voltage - Secondary (Full Load) (Series) | 234 V |
| Weight | 24 lbs |
