NC6-P106-04
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 4CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NC6-P106-04
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 4CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NC6-P106-04 | NC6 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 4 | 2 - 24 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 4 | 2 - 18 |
| Number of Wire Entries | - | 22 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Zinc, Clear Chromate, Nickel |
| Terminal Screw Material | Brass | Steel, Brass |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate, Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 2.05 | |
NC6 Series
CONN BARRIER STRIP 3CIRC 0.375"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Bottom Termination | Material Flammability Rating | Terminal Screw Material | Terminal Screw Finish | Barrier Type | Pitch [x] | Pitch [x] | Current Rating (Amps) | Terminal Block Type | Material - Insulation | Mounting Type | Top Termination | Color | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Voltage Rating | Number of Circuits | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors NC6-P108-03 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 3 | 12 AWG | 22 AWG | 300 VDC | 3 | ||
TE Connectivity AMP Connectors NC6-P107-06 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 6 | 12 AWG | 22 AWG | 300 VDC | 6 | ||
TE Connectivity AMP Connectors NC6-P108-24 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 12 AWG | 22 AWG | 300 VDC | 24 | |||
TE Connectivity AMP Connectors NC6-P107-12 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 12 | 12 AWG | 22 AWG | 300 VDC | 12 | ||
TE Connectivity AMP Connectors NC6-P108-06 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 6 | 12 AWG | 22 AWG | 300 VDC | 6 | ||
TE Connectivity AMP Connectors NC6-P108-10 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 10 | 12 AWG | 22 AWG | 300 VDC | 10 | ||
TE Connectivity AMP Connectors NC6-P106-04 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Brass | Nickel | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 4 | 12 AWG | 22 AWG | 300 VDC | 4 | ||
TE Connectivity AMP Connectors NC6-P108-22 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 12 AWG | 22 AWG | 300 VDC | 22 | 22 | ||
TE Connectivity AMP Connectors NC6-P107-24 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 12 AWG | 22 AWG | 300 VDC | 24 | |||
TE Connectivity AMP Connectors NC6-P107-02 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 2 | 12 AWG | 22 AWG | 300 VDC | 2 | ||
TE Connectivity AMP Connectors NC6-P107-05 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 5 | 12 AWG | 22 AWG | 300 VDC | 5 | ||
TE Connectivity AMP Connectors NC6-P108-05 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 5 | 12 AWG | 22 AWG | 300 VDC | 5 | ||
TE Connectivity AMP Connectors NC6-P108-18 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 18 | 12 AWG | 22 AWG | 300 VDC | 18 | ||
TE Connectivity AMP Connectors NC6-P107-07 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 7 | 12 AWG | 22 AWG | 300 VDC | 7 | ||
TE Connectivity AMP Connectors NC6-P108-15 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 15 | 12 AWG | 22 AWG | 300 VDC | 15 | ||
TE Connectivity AMP Connectors NC6-P107-08 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 8 | 12 AWG | 22 AWG | 300 VDC | 8 | ||
TE Connectivity AMP Connectors NC6-P107-16 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 16 | 12 AWG | 22 AWG | 300 VDC | 16 | ||
TE Connectivity AMP Connectors NC6-P108-08 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws with Captive Plate | Black | 8 | 12 AWG | 22 AWG | 300 VDC | 8 | ||
TE Connectivity AMP Connectors NC6-P107-10 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 10 | 12 AWG | 22 AWG | 300 VDC | 10 | ||
TE Connectivity AMP Connectors NC6-P107-14 | -40 °C | 105 ░C | 1 | PC Pin | UL94 V-0 | Steel | Clear Chromate, Zinc | 2 Wall (Dual) | 9.53 mm | 0.375 in | 20 A | Barrier Block | Nylon, Polyamide (PA) | Through Hole | Screws | Black | 14 | 12 AWG | 22 AWG | 300 VDC | 14 |
Description
General part information
NC6 Series

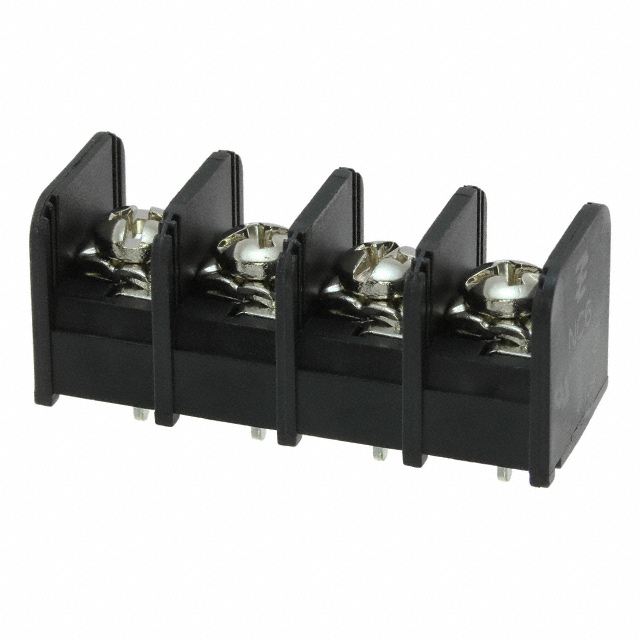

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
