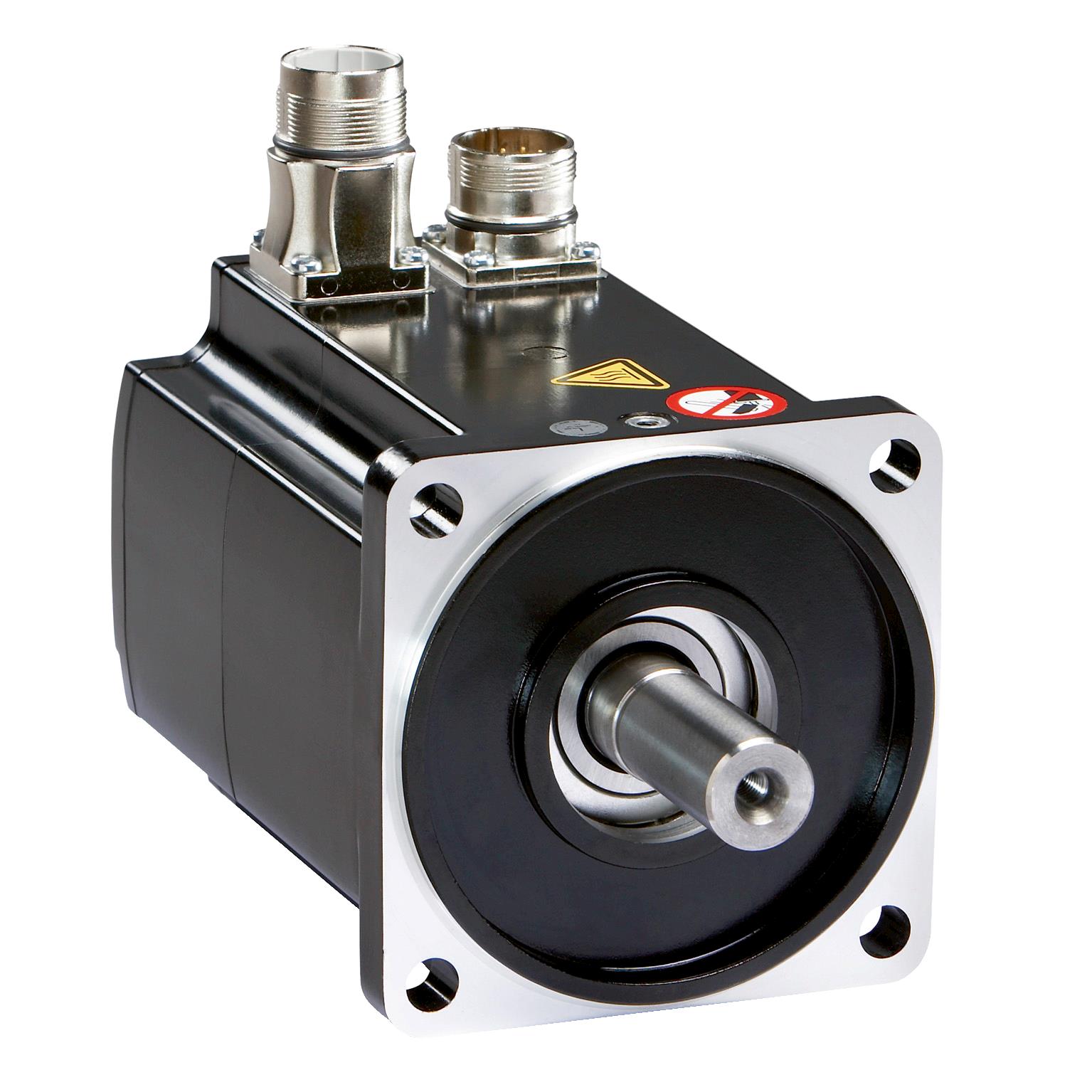

BMH2053P36A1A
ActiveSCHNEIDER ELECTRIC
AC, DC & SERVO MOTORS MOTOR 205MM IP65 KEY ENC SINGLE16 STR
BMH2053P36A1A
ActiveSCHNEIDER ELECTRIC
AC, DC & SERVO MOTORS MOTOR 205MM IP65 KEY ENC SINGLE16 STR
Description
General part information
Lexium 32 Series
AC Motor Servomotor 3800 RPM 6.5kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH2053P36A1A |
|---|---|
| Diameter - Shaft | 1.5 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 3.15 in |
| Mounting Hole Spacing | 7.087 in |
| Power - Rated | 6.5 kW |
| RPM | 3800 RPM |
| Size / Dimension Length | 8.071 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 8.071 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 52200 mNm |
| Torque - Rated (oz-in) | 7392 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
