PDB260W-1700-210

Obsolete

ERP Power, LLC

120 TO 277 VAC, 93% EFFICIENCY,

Search across all available documentation for this part.

Obsolete

ERP Power, LLC

120 TO 277 VAC, 93% EFFICIENCY,

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC LED POWER SUPPLY 260W DUAL

Part	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Number of Outputs	Termination Style	Features	Ratings	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input (Min) [Min]	Topology	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature	Dimming	Current - Output (Max)
ERP Power, LLC PDB260W-1300-280	152 V, 213 V	200 V, 280 V	260 W	2	Wire Leads	OCP, OTP, SCP	IP66	CB, CE, cULus	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Constant Current	120 VAC	AC DC Converter	Chassis Mount	93 %	277 VAC	194 °F	Analog
ERP Power, LLC PDB260W-1700-210	114 V, 160 V	150 V, 210 V	260 W	1	Wire Leads	OCP, OTP, SCP	IP66	CB, CE, cULus	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Constant Current	120 VAC	AC DC Converter	Chassis Mount	93 %	277 VAC		Analog	1.24 A, 1.7 A
ERP Power, LLC PDB260W-0860-400	228 V, 304 V	300 V, 400 V	260 W	2	Wire Leads	OCP, OTP, SCP	IP66	CB, CE, cULus	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Constant Current	120 VAC	AC DC Converter	Chassis Mount	93 %	277 VAC	194 °F	Analog	650 mA, 860 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

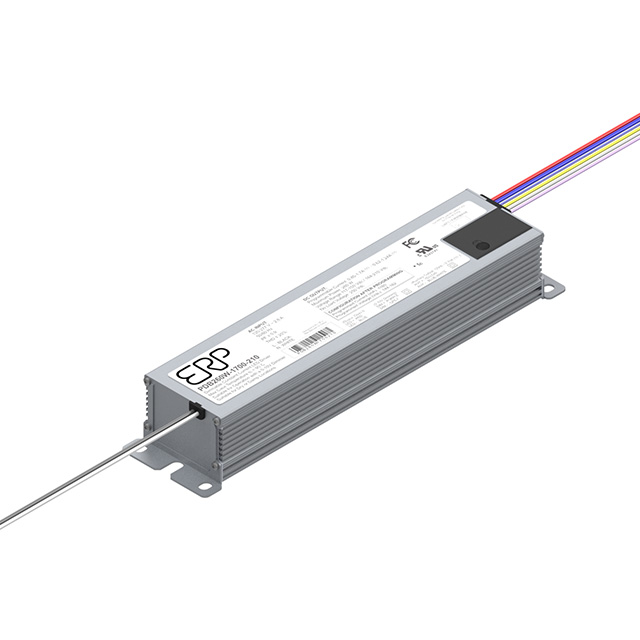

1.7A, 1.24A 114 ~ 150V, 160 ~ 210V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available
