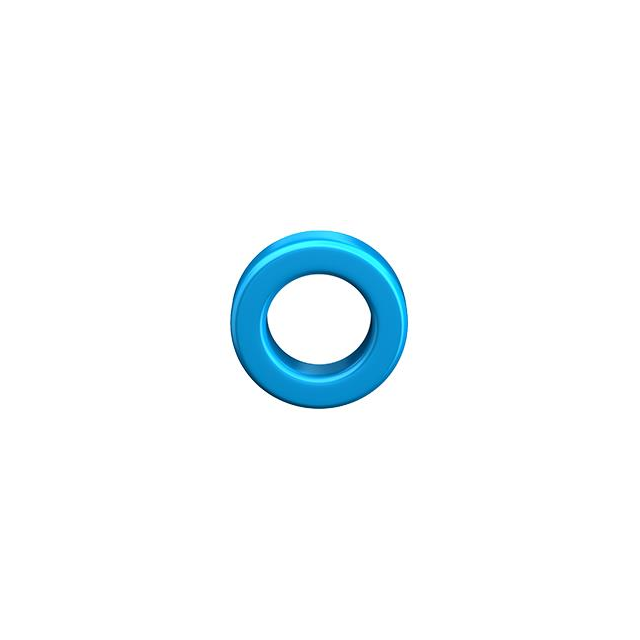

Specification	B64290L0644X035

Core Factor (ΣI/A) mm⁻¹	2.67 mm⁻¹
Core Type	Toroid
Diameter	0.567 in
Effective Area (Ae)	12.27 mm²
Effective Length (le)	32.7 mm
Effective Magnetic Volume (Ve)	401 mm³
Finish	Epoxy
Gap	Ungapped
Height	0.234 in
Inductance Factor (Al)	2.83 µH
Initial Permeability (µi)	6000
Material	T35
Tolerance	25 %
