GH1250
ActiveEaton - Electronics Division

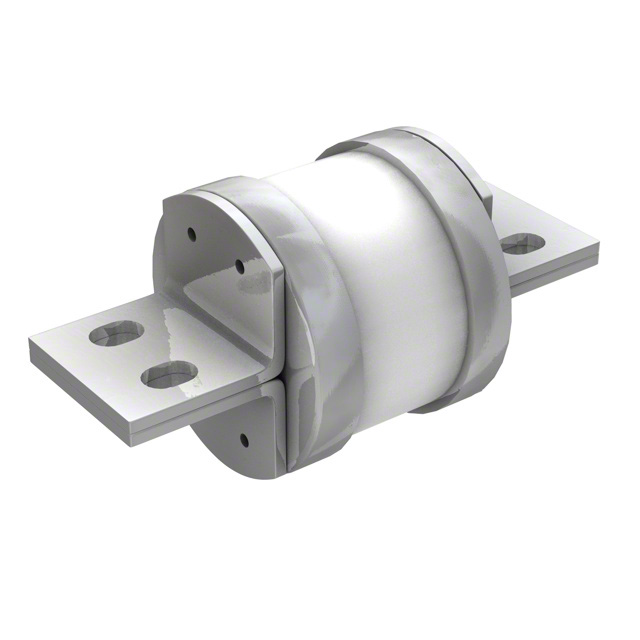

FUSE CARTRIDGE 1.25KA 550VAC CYL
GH1250
ActiveEaton - Electronics Division
FUSE CARTRIDGE 1.25KA 550VAC CYL
Description
General part information
GH1250
1.25kA 550 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GH1250 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 1.25 kA |
| Fuse Type | Cartridge |
| Melting I²t | 14000 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 3.937 in |
| Size / Dimension Length | 3.189 in |
| Voltage Rating - AC | 550 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
