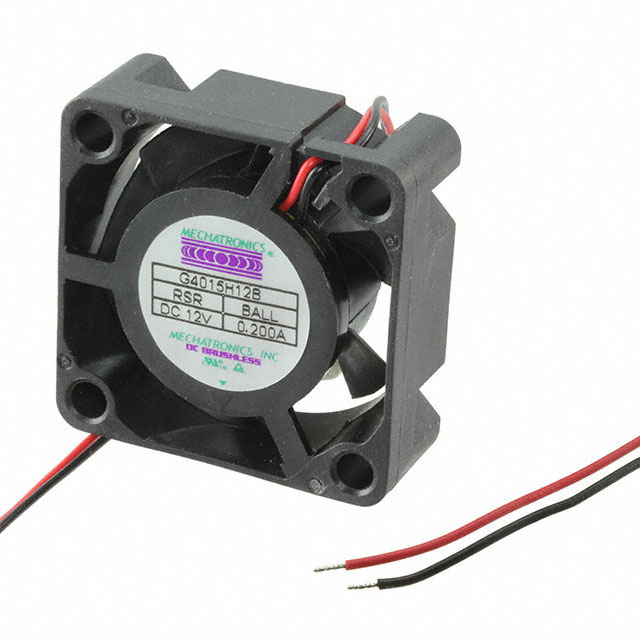

G4015M12B-RSR - FAN AXIAL 40X15MM

G4015M12B-RSR

Active
Mechatronics Bearing Group

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Fan, Blower Lead Wire SpecDatasheet+2
G4015M12B-RSR - FAN AXIAL 40X15MM

G4015M12B-RSR

Active
Mechatronics Bearing Group

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Fan, Blower Lead Wire SpecDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationG4015M12B-RSR
Air Flow6 CFM
Air Flow0.168 m³/min
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Fan TypeTubeaxial
FeaturesThermal Overload Protector (TOP)
Material - BladePolybutylene Terephthalate (PBT)
Noise23 dB(A)
RPM6000 RPM
Size / DimensionSquare
Size / Dimension [x]40 mm
Size / Dimension [z]40 mm
Termination2 Wire Leads
Voltage - Rated12 VDC
Weight23.13 g
Weight0.051 lb
Width [x]15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 100$ 9.15

Description

General part information

G4015M12B-RSR

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads
