1424483

Active

Phoenix Contact

CABLE GLAND 18.01-25MM M32

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 18.01-25MM M32

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424483	G-INS-M32 Series

Color	Black	Silver, Gray, Black
Includes	Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66, IP68, IP69, IP66/IP68
Material	Polyamide (PA), Nylon	Brass, Nickel Plated, Polyamide (PA), Nylon, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	25 mm	25 mm
Outside Cable Diameter (Max)	-	18.01 - 21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.709 - 0.984 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.512 - 0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	15 - 18.01 mm
Thread Length	16 mm	8 - 16 mm
Thread Length	0.63 in	0.315 - 0.63 in
Thread Size	M32x1.5	M32x1.5, M32
Type	Cable Gland	Cable Gland

CABLE GLAND 13-18.01MM M32 BRASS

Part	Includes	Material	Color	Ingress Protection	Thread Length	Thread Length	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1424528	O-Ring, Seal	Brass, Nickel Plated	Silver	IP66, IP68, IP69	0.354 in	9 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.709 in	18.01 mm	0.512 in	13 mm
Phoenix Contact 1424473	Seal	Polyamide (PA), Nylon	Gray	IP66/IP68	0.591 in	15 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.984 in		0.709 in		25 mm	18.01 mm
Phoenix Contact 1424483	Seal	Polyamide (PA), Nylon	Black	IP66/IP68	0.63 in	16 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.984 in		0.709 in		25 mm	18.01 mm
Phoenix Contact 1411136	Seal	Polyamide (PA), Nylon	Black	IP66/IP68	0.394 in	10 mm	Cable Gland	100 °C	-40 °C	M32	0.827 in	21 mm	0.591 "			15 mm
Phoenix Contact 1411166	O-Ring, Seal	Brass, Nickel Plated	Silver	IP66, IP68, IP69	0.315 in	8 mm	Cable Gland	100 °C	-40 °C	M32	0.827 in	21 mm	0.591 "			15 mm
Phoenix Contact 1424545	O-Ring, Seal	Stainless Steel	Silver	IP66, IP68, IP69	0.315 in	8 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.827 in	21 mm	0.591 "			15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

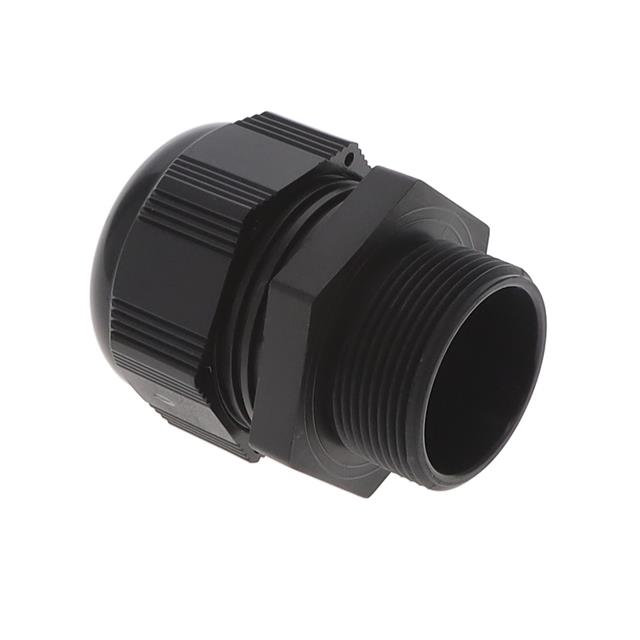

Cable Gland Polyamide (PA), Nylon M32x1.5 Black
