25193 BK005

Active

ALPHA WIRE

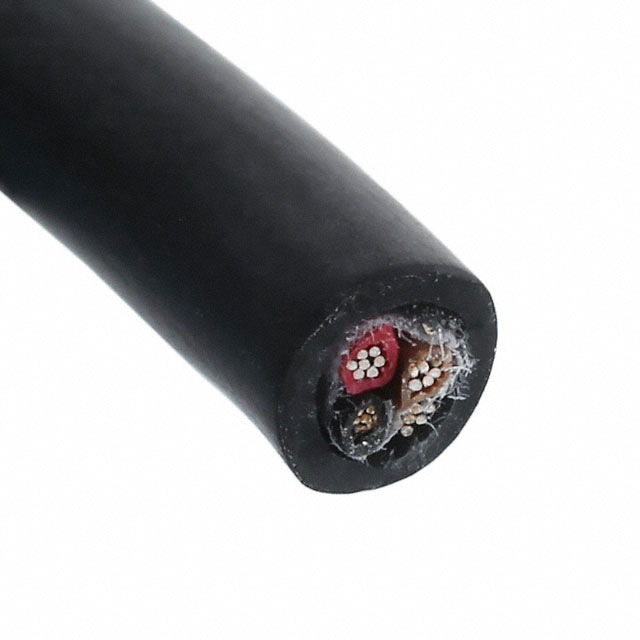

CABLE 3COND 22AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25193 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

CABLE 3COND 22AWG BLK SHLD 100'

Part	Cable Type	Shield Coverage	Ratings	Shield Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Shield Type	Wire Gauge	Features	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color
ALPHA WIRE 25193 BK005	Multi-Conductor	100 %	ISO 10993, UL Style 20668	Aluminum	300 V	4.57 mm	0.18 in	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	3	Foil	22 AWG	Biological Compatibility, Drain Wire, Rip Cord	Copper, Tinned	30.5 m	100 ft	Polyurethane (PU)	7	30 AWG	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 346.74

General part information

3 Conductor Multi-Conductor Cable Black 22 AWG Foil 100.0' (30.5m)
