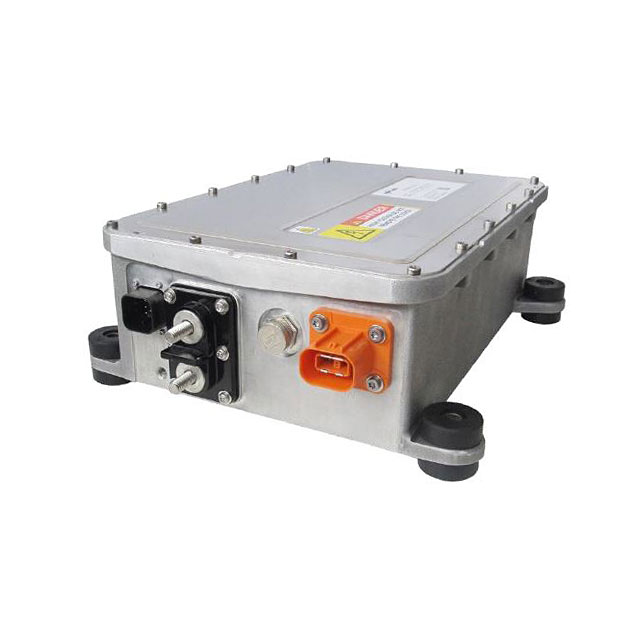

350DNC40-24-CG

Active

Bel Power Solutions

DC/DC CONVERTER 28V 3360W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 28V 3360W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	350DNC40-24-CG	350DNC40 Series

Accessory Type	-	Connection Kit
Current - Output (Max) [Max]	120 A	120 A
Efficiency	93 %	93 %
For Use With/Related Products	-	DNC Power Supplies
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	45 °C	45 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	3360 W	3360 W
Size / Dimension [x]	350 mm	350 mm
Size / Dimension [x]	13.78 in	13.78 in
Size / Dimension [y]	13.43 in	13.43 in
Size / Dimension [y]	341 mm	341 mm
Size / Dimension [z]	7.39 in	7.39 in
Size / Dimension [z]	187.7 mm	187.7 mm
Type	Enclosed	Enclosed
Voltage - Input (Max) [Max]	430 V	430 V
Voltage - Input (Min) [Min]	240 VDC	240 VDC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	28 V	28 V

DC/DC CONVERTER 28V 3360W

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Type	Voltage - Isolation	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Accessory Type	For Use With/Related Products
Bel Power Solutions 350DNC40-24-CG	430 V	240 VDC	45 °C	-40 °C	1	93 %	Enclosed	3000 V	28 V	Chassis Mount	120 A	350 mm	7.39 in	13.43 in	341 mm	13.78 in	187.7 mm	3360 W
Bel Power Solutions 350DNC40-CON-KIT-8G																			Connection Kit	DNC Power Supplies

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 5037.38

General part information

Enclosed DC DC Converter 1 Output 28V 120A 430V Input
