2-1410271-0
ActiveTE Connectivity AMP Connectors

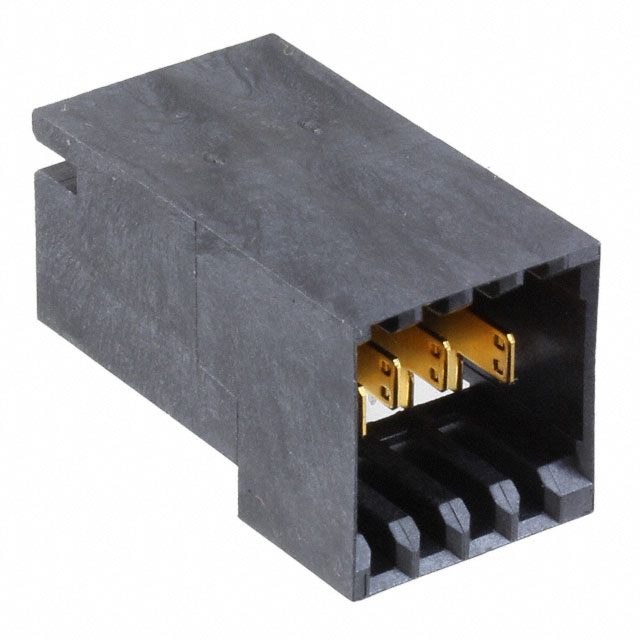

CONN PLUG POWER 4POS EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1410271-0
ActiveTE Connectivity AMP Connectors
CONN PLUG POWER 4POS EDGE MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1410271-0 | 1410271 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | Power | Power |
| Connector Type | Plug, Male Blades | Plug, Male Blades, Male Blades, Header |
| Connector Usage | Daughtercard | Daughtercard |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Layout, Typical | 4 Power | 4 Power |
| Current Rating (Amps) | 20 A | 20 A |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 4 | 4 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 250 VDC | 250 VDC |
1410271 Series
CONN PLUG POWER 4POS EDGE MNT
| Part | Termination | Connector Style | Voltage Rating | Connector Type | Number of Positions | Contact Layout, Typical | Material Flammability Rating | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Current Rating (Amps) | Contact Finish | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1410271-0 | Press-Fit | Power | 250 VDC | Plug, Male Blades | 4 | 4 Power | UL94 V-0 | All | 105 ░C | -55 °C | Board Edge, Right Angle, Through Hole | Black | 50 µin | 1.27 µm | Daughtercard | 20 A | Gold | 1 |
TE Connectivity AMP Connectors 1-1410271-8 | Press-Fit | Power | 250 VDC | Header, Male Blades | 4 | 4 Power | UL94 V-0 | All | 105 ░C | -55 °C | Board Edge, Right Angle, Through Hole | Black | 50 µin | 1.27 µm | 20 A | Gold | 1 | |
TE Connectivity AMP Connectors 2-1410271-1 | Press-Fit | Power | 250 VDC | Header, Male Blades | 4 | 4 Power | UL94 V-0 | All | 105 ░C | -55 °C | Board Edge, Right Angle, Through Hole | Black | 50 µin | 1.27 µm | 20 A | Gold | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.62 | |
| 27 | $ 11.07 | |||
| 108 | $ 10.65 | |||
Description
General part information
1410271 Series
4 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black Power
