2499-003-X5W0-502PLF
ActiveTusonix a Subsidiary of CTS Electronic Components

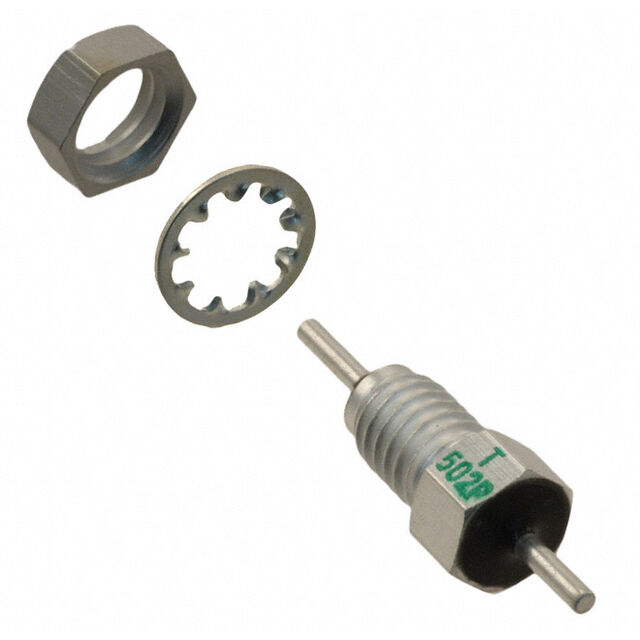

CAP FEEDTHRU 5000PF 500V AXIAL
2499-003-X5W0-502PLF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 5000PF 500V AXIAL
Description
General part information
2499-003-X5W0-502PLF
5000 pF Feed Through Capacitor 500V 20 A Axial, Bushing
Technical Specifications
Parameters and characteristics for this part
| Specification | 2499-003-X5W0-502PLF |
|---|---|
| Capacitance | 5000 pF |
| Current | 20 A |
| Insertion Loss | 30 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 0.468 in |
| Temperature Coefficient | X5W |
| Thread Size (Max) | 28 mm |
| Thread Size (Min) | 12 mm |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 100 % |
| Type | Feed Through |
| Voltage - Rated | 500 V |
