MFLA1B12VA2M9
ActiveOslo Switch
SWITCH PB SPST 10A 250VAC
MFLA1B12VA2M9
ActiveOslo Switch
SWITCH PB SPST 10A 250VAC
Description
General part information
MFLA1B12VA2M9

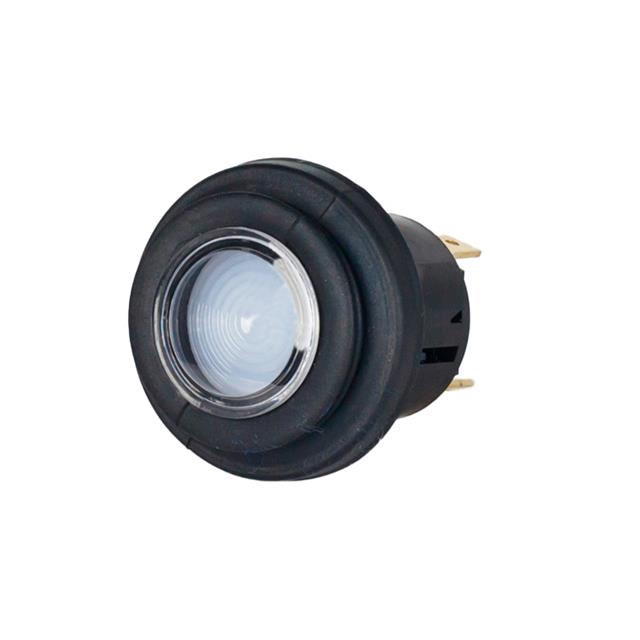

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | MFLA1B12VA2M9 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | SPST-NO |
| Color | Amber |
| Color - Actuator/Cap | Clear |
| Current Rating | 10 A |
| Electrical Life (Cycles) | 25000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 12 V |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 22.5 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | Off-On |
| Termination Style | Quick Connect |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
