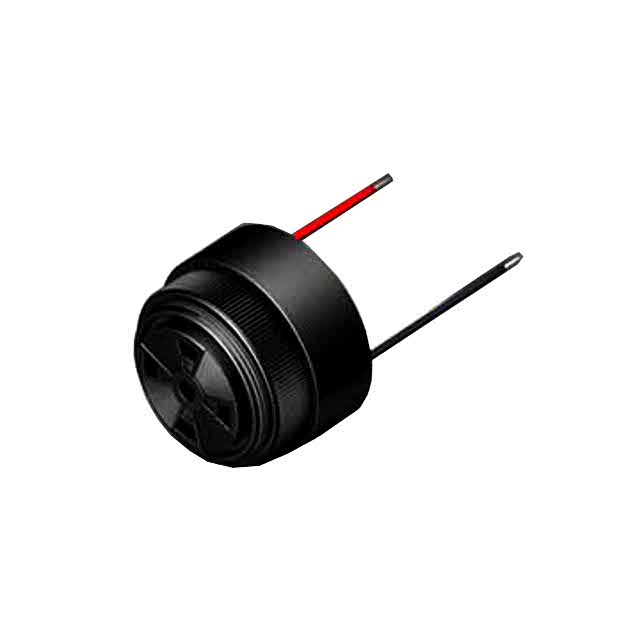

MC-07-130-W
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC-07-130-W
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MC-07-130-W | MC-07-130 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 35 mA | 35 mA |
| Current - Supply [Min] | 4 mA | 4 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.9 kHz | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 0.99 in | 0.99 in |
| Height - Seated (Max) [Max] [z] | 25.15 mm | 25.15 mm |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Single Tone | Single Tone |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.41 in | 1.41 in |
| Size / Dimension [diameter] | 35.81 mm | 35.81 mm |
| Sound Pressure Level (SPL) | 93 dB | 93 dB |
| Technology | Piezo | Piezo |
| Termination | Wire Leads | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Quick Connect Tab - 0.250" (6.35mm) |
| Voltage Range [Max] | 30 V | 30 V |
| Voltage Range [Min] | 3 V | 3 V |
MC-07-130 Series
BUZZER PIEZO 35.81MM PNL MNT
| Part | Sound Pressure Level (SPL) | Size / Dimension [diameter] | Size / Dimension [diameter] | Port Location | Input Type | Driver Circuitry | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ingress Protection | Voltage Range [Max] | Voltage Range [Min] | Approval Agency | Current - Supply [Min] | Current - Supply [Max] | Operating Mode | Technology | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc MC-07-130-S | 93 dB | 1.41 in | 35.81 mm | Top | DC | Indicator, Internally Driven | 2.9 kHz | 0.99 in | 25.15 mm | IP68 - Dust Tight, Waterproof | 30 V | 3 V | UL, UR | 4 mA | 35 mA | Single Tone | Piezo | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
Floyd Bell Inc MC-07-130-W | 93 dB | 1.41 in | 35.81 mm | Top | DC | Indicator, Internally Driven | 2.9 kHz | 0.99 in | 25.15 mm | IP68 - Dust Tight, Waterproof | 30 V | 3 V | UL, UR | 4 mA | 35 mA | Single Tone | Piezo | Wire Leads |
Floyd Bell Inc MC-07-130-Q | 93 dB | 1.41 in | 35.81 mm | Top | DC | Indicator, Internally Driven | 2.9 kHz | 0.99 in | 25.15 mm | IP68 - Dust Tight, Waterproof | 30 V | 3 V | UL, UR | 4 mA | 35 mA | Single Tone | Piezo | Quick Connect Tab - 0.250" (6.35mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.26 | |
Description
General part information
MC-07-130 Series
Buzzers Indicator, Internally Driven Piezo 4 ~ 35mA 2.9kHz 93dB @ 30V, 61cm Panel Mount Wire Leads
