PE45012
ActivePasternack

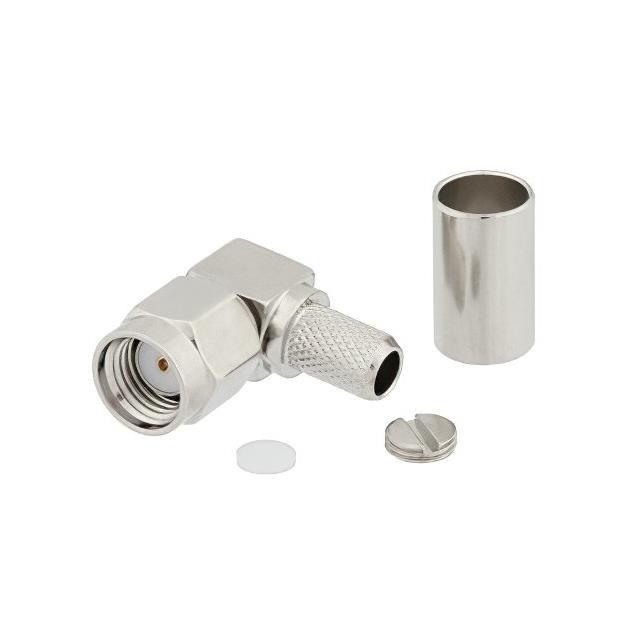

REVERSE POLARITY SMA MALE RIGHT
PE45012
ActivePasternack
REVERSE POLARITY SMA MALE RIGHT
Description
General part information
PE45012
RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45012 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141, RG-58 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
