120-8552-200

Active

Sure-Seal

SSF-2P BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

120-8552-200

Active

Sure-Seal

SSF-2P BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.97
		10	$ 10.74
		25	$ 9.64
		50	$ 8.36
		100	$ 7.67

Description

General part information

120-8 Series

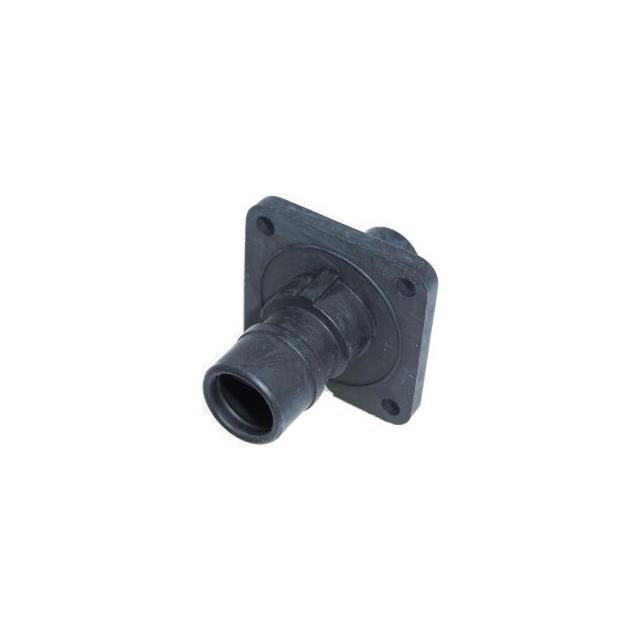

2 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	120-8552-200	120-8 Series

Color	-	Black
Connector Type	Receptacle Housing	Plug Housing, Receptacle Housing, Female Sockets, Plug
Contact Material	-	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Push-Pull	Push-Pull
Housing Color	Black	Black
Ingress Protection	IP67, IP65	IP67, IP65, IP67 - Dust Tight, Waterproof
Insert Material	Santoprene™ 101-73	Santoprene™ 101-73
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 10
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Santoprene™ 101-73	Rubber, Santoprene™ 101-73
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Female Sockets or Male Pins	For Female Sockets, For Female Sockets or Male Pins, For Male Pins

120-8 Series

MSS-3R

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Color	Primary Material	Fastening Type	Shielding	Termination	Contact Material	Contact Shape	Number of Positions	Connector Type	Housing Color	Contact Type	Mounting Type	Note	Shell Material	Type	Insert Material	Mounting Feature
Sure-Seal 120-8551-101	-40 °C	105 ░C	Keyed	IP65, IP67	Black	Plastic	Push-Pull	Unshielded	Crimp	Copper Alloy
Sure-Seal 120-8552-006	-40 °C	105 ░C	Keyed	IP67 - Dust Tight, Waterproof		Plastic	Push-Pull	Unshielded			Circular	6	Plug Housing	Black	Crimp	Free Hanging (In-Line)	Contacts Not Included	Rubber	For Female Sockets
Sure-Seal 120-8552-307	-40 °C	105 ░C	Keyed	IP65, IP67		Plastic	Push-Pull	Unshielded			Circular	10	Receptacle Housing	Black	Crimp		Contacts Not Included	Santoprene™ 101-73	For Female Sockets or Male Pins	Santoprene™ 101-73	Flange
Sure-Seal 120-8551-102	-40 °C	105 ░C	Keyed	IP65, IP67	Black	Plastic	Push-Pull	Unshielded	Crimp	Copper Alloy		4
Sure-Seal 120-8551-005	-40 °C	105 ░C	Keyed	IP67 - Dust Tight, Waterproof		Plastic	Push-Pull	Unshielded			Circular		Receptacle Housing	Black	Crimp	Free Hanging (In-Line)	Contacts Not Included	Rubber	For Male Pins
Sure-Seal 120-8551-100	-40 °C	105 ░C	Keyed	IP65, IP67	Black	Plastic	Push-Pull	Unshielded	Crimp	Copper Alloy		2
Sure-Seal 120-8552-102	-40 °C	105 ░C	Keyed	IP65, IP67, IP67 - Dust Tight, Waterproof	Black	Plastic	Push-Pull	Unshielded	Crimp	Copper Alloy		4	Female Sockets, Plug			Free Hanging (In-Line)		Rubber
Sure-Seal 120-8552-200	-40 °C	105 ░C	Keyed	IP65, IP67		Plastic	Push-Pull	Unshielded			Circular	2	Receptacle Housing	Black	Crimp		Contacts Not Included	Santoprene™ 101-73	For Female Sockets or Male Pins	Santoprene™ 101-73	Flange
Sure-Seal 120-8552-201	-40 °C	105 ░C	Keyed	IP65, IP67		Plastic	Push-Pull	Unshielded			Circular		Receptacle Housing	Black	Crimp		Contacts Not Included	Santoprene™ 101-73	For Female Sockets or Male Pins	Santoprene™ 101-73	Flange
Sure-Seal 120-8552-100	-40 °C	105 ░C	Keyed	IP65, IP67	Black	Plastic	Push-Pull	Unshielded	Crimp	Copper Alloy		2				Free Hanging (In-Line)
