BFVD5
ActiveAmphenol TPC Wire & Cable

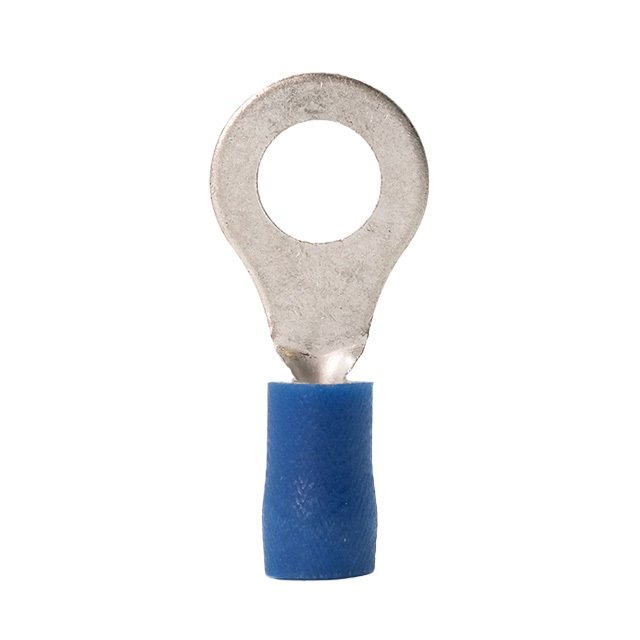

CONN RING 16-14 AWG #10 BLUE
BFVD5
ActiveAmphenol TPC Wire & Cable
CONN RING 16-14 AWG #10 BLUE
Description
General part information
BFVD5
Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BFVD5 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Electrolytic Copper |
| Features | Heavy Duty, Butted Seam |
| Insulation | Insulated |
| Material - Insulation | Vinyl |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
