009286003021106

Obsolete

KYOCERA AVX

CONN JUNCT 3POS POKE-IN 18-26AWG

Search across all available documentation for this part.

Obsolete

KYOCERA AVX

CONN JUNCT 3POS POKE-IN 18-26AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

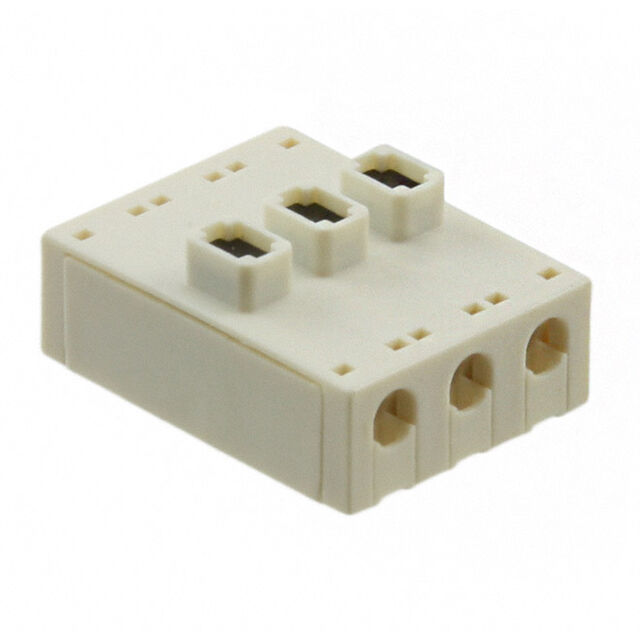

3 Position Rectangular Junction Box Connector Poke-In Tin 18-26 AWG

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	009286003021106	009286 Series

Cable Termination	Poke-In	Poke-In
Color	White	White, Yellow, Green, Red, Black, Brown, Blue
Connector Type	Junction Box	Junction Box
Contact Finish	Tin	Tin
Contact Type	Spring	Spring
Features	Feed Through	Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	1 - 8
Number of Rows	1	1
Wire Gauge	-	12 - 13.5 AWG
Wire Gauge [Max]	26 AWG	18 - 26 AWG
Wire Gauge [Min]	17.5 AWG	16 - 17.5 AWG
Wire Type	Discrete	Discrete

CONN JUNCT 8POS POKE-IN 18-26AWG

Part	Wire Type	Connector Type	Number of Positions	Contact Type	Color	Contact Finish	Features	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Cable Termination	Number of Rows	Wire Gauge
KYOCERA AVX 009286008021906	Discrete	Junction Box	8	Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286002203906	Discrete	Junction Box	2	Spring	White	Tin	Feed Through	24 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286001314406	Discrete	Junction Box	1	Spring	Yellow	Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	13.5 AWG
KYOCERA AVX 009286002021906	Discrete	Junction Box	2	Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286004021106	Discrete	Junction Box	4	Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286001316406	Discrete	Junction Box	1	Spring	Yellow	Tin	Feed Through	18 AWG	16 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286001316606	Discrete	Junction Box	1	Spring	Green	Tin	Feed Through	18 AWG	16 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286006121906	Discrete	Junction Box	6	Spring	Red	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
KYOCERA AVX 009286001312806	Discrete	Junction Box	1	Spring	Black	Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	12 AWG
KYOCERA AVX 009286003021906	Discrete	Junction Box		Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
