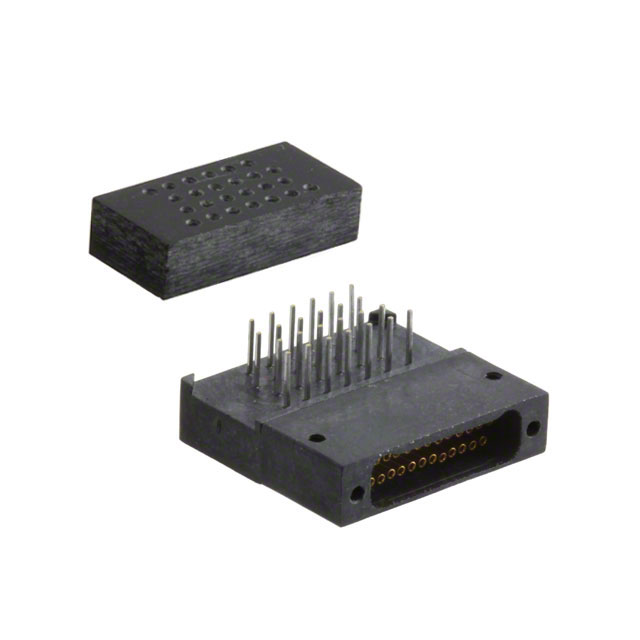

STM025M6CN
UnknownTE Connectivity Aerospace, Defense and Marine
CONN D-TYPE RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STM025M6CN
UnknownTE Connectivity Aerospace, Defense and Marine
CONN D-TYPE RCPT 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STM025M6CN | STM02 Series |
|---|---|---|
| - | - | |
| Color | - | White |
| Connector Style | D-Type, Nano-D | D-Type, Nano-D, D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Plug, Male Pins |
| Contact Finish | Tin-Lead | Tin-Lead, Gold |
| Contact Material | Brass | Brass, Beryllium Copper |
| Contact Type | Signal | Signal |
| Dielectric Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Flange Feature | - | Female Screwlock, Mating Side |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Free Hanging (In-Line) |
| Number of Rows | 2 | 2 |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Aluminum, Nickel Plated, Electroless |
| Shell Size, Connector Layout [custom] | DB, B | DB, B |
| Shell Size, Connector Layout [custom] | 3 | 3 |
| Termination | Solder | Solder, Wire Leads |
| Wire Gauge | - | 30 AWG |
STM02 Series
CONN D-TYPE RCPT 25POS R/A SLDR
| Part | Contact Material | Dielectric Material | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Mounting Type | Connector Style | Contact Finish | Contact Type | Number of Rows | Shell Material, Finish | Color | Wire Gauge | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine STM025M6CN | Brass | Liquid Crystal Polymer (LCP) | Receptacle, Female Sockets | B, DB | 3 | Solder | Through Hole, Right Angle | D-Type, Nano-D | Tin-Lead | Signal | 2 | Aluminum, Electroless, Nickel Plated | |||
TE Connectivity Aerospace, Defense and Marine STM025B2Q | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine STM025SC2DC006N | Beryllium Copper | Liquid Crystal Polymer (LCP) | Receptacle, Female Sockets | B, DB | 3 | Wire Leads | Free Hanging (In-Line) | D-Sub | Gold | Signal | 2 | Aluminum, Electroless, Nickel Plated | White | 30 AWG | |
TE Connectivity Aerospace, Defense and Marine STM025C6N | Brass | Liquid Crystal Polymer (LCP) | Male Pins, Plug | B, DB | 3 | Solder | Through Hole, Right Angle | D-Type, Nano-D | Tin-Lead | Signal | 2 | Aluminum, Electroless, Nickel Plated | Female Screwlock, Mating Side | ||
TE Connectivity Aerospace, Defense and Marine STM025L82CN | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine STM025M6SN | Brass | Liquid Crystal Polymer (LCP) | Receptacle, Female Sockets | B, DB | 3 | Solder | Through Hole, Right Angle | D-Type, Nano-D | Tin-Lead | Signal | 2 | Aluminum, Electroless, Nickel Plated | Female Screwlock, Mating Side | ||
TE Connectivity Aerospace, Defense and Marine STM025M51VQ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 465.07 | |
Description
General part information
STM02 Series
25 Position D-Type, Nano-D Receptacle, Female Sockets Connector
